Omnitronic
!

PAS-212+ 12"+1" 300w/97dB 11039437

!
    Rated power: 300 W RMS
    Program power: 600 W
    Components: 30 cm woofer (12"), 2.5 cm horn (1")
    Connections: 2 Speaker sockets
    Sensitivity (1 W/m): 97 dB
    Max. SPL (1 m): 124,5 dB
    Impedance: 8 ohms
    Frequency range: 58 Hz - 20 kHz
    Dispersion angle (1 kHz): 50-100 x 55
    Dimensions (H x W x D): 620 x 375 x 400 mm
    Weight: 18,5 kg

PAS-212PRO-A 2-way top, active, DSP 11039445

!
    Power supply: 100-240 V AC, 50/60 Hz
    Power consumption: 110 W (1/8 power)
    Rated power: 400 W RMS
    Program power: 800 W
    Components: 30 cm woofer (12"), 3.5 cm horn (1.4")
    Input: Line: Combination XLR/6.3 mm jack, RCA L/R Mic: Combination XLR/6.3 mm jack
    Output: Line: XLR
    Sensitivity (1 W/m): 97 dB
    Max. SPL (1 m): 124 dB
    Impedance: 8 ohms
    Frequency range: 55 Hz - 20 kHz
    Crossover frequency: 2 kHz
    Dispersion angle (1 kHz): 50-100° x 55°
    Dimensions (HxWxD): 600 x 355 x 330 mm
    Weight: 17 kg

PAS-215+ 15"+1" 400w/99dB 11039438

!
    Rated power: 400 W RMS
    Program power: 800 W
    Components: 38 cm woofer (15"), 3.5 cm horn (1.4")
    Connections: 2 Speaker sockets
    Sensitivity (1 W/m): 97 dB (1 W, 1 m)
    Max. SPL (1 m): 126 dB (1 m)
    Impedance: 8 Ohm
    Frequency range: 55 Hz - 20 kHz
    Crossover frequency: 2000 Hz
    Dispersion angle (HxV): 50-100° x 55°
    Flying points: 12 x M10
    Dimensions (H x W x D): 685 x 433 x 371 mm
    Weight: 23.5 kg

PAS-215PRO-A 2-way top, active, DSP 11039447

!
    Power supply: 100-240 V AC, 50/60 Hz
    Power consumption: 110 W (1/8 power)
    Rated power: 450 W RMS
    Program power: 900 W
    Components: 38 cm woofer (15"), 4.5 cm horn (1.75")
    Input: Line: Combination XLR/6.3 mm jack, RCA L/R Mic: Combination XLR/6.3 mm jack
    Output: Line: XLR
    Sensitivity (1 W/m): 97 dB
    Max. SPL (1 m): 124 dB
    Impedance: 8 ohms
    Frequency range: 50 Hz - 20 kHz
    Crossover frequency: 2 kHz
    Dispersion angle (1 kHz): 50-100° x 55°
    Dimensions (HxWxD): 700 x 430 x 365 mm
    Weight: 22 kg

PAS-121 12" sub 350w/96dB 11039620

!
    Rated power: 350 W RMS
    Program power: 700 W
    Components: 30 cm woofer (12")
    Connections: 2 Speaker sockets
    Sensitivity (1 W/m): 96 dB
    Max. SPL (1 m): 126 dB
    Impedance: 8 ohms
    Frequency range: 48 - 120 Hz, ±3dB
    Dimensions (H x W x D): 398 x 571 x 364 mm
    Weight: 21 kg

PAS-118 18" hsub 800w/98dB 11039640

!
    Rated power: 800 W RMS
    Program power: 1600 W
    Components: 45 cm woofer (18")
    Connections: 2 Speaker sockets
    Sensitivity (1 W/m): 98 dB
    Max. SPL (1 m): 127 dB
    Impedance: 8 ohms
    Frequency range: 35 - 500 Hz
    Dimensions (H x W x D): 710 x 510 x 720 mm
    Weight: 59 kg

PAS-181 18" sub 800w/98dB 11039626

!
    Rated power: 800 W RMS
    Program power: 1600 W
    Components: 45 cm woofer (18")
    Connections: 2 Speaker sockets
    Sensitivity (1 W/m): 98 dB
    Max. SPL (1 m): 128 dB
    Impedance: 8 ohms
    Frequency range: 40 - 180 Hz
    Dimensions (H x W x D): 600 x 550 x 620 mm
    Weight: 50 kg

PAS-218 2*18" hsub 1600w/101dB 11039642

!
    Rated power: 1600 W RMS
    Program power: 3200 W
    Components: 2 x 45 cm woofer (2 x 18")
    Connections: 2 Speaker sockets
    Sensitivity (1 W/m): 101 dB
    Max. SPL (1 m): 133 dB
    Impedance: 4 ohms
    Frequency range: 38 - 500 Hz
    Dimensions (H x W x D): 1035 x 700 x 720 mm
    Weight: 110 kg

PAS-151 Pro 15" sub 500w/97dB 11039621

!
    Rated power: 500 W RMS
    Program power: 1000 W
    Components: 38 cm woofer (15")
    Connections: 2 Speaker sockets
    Sensitivity (1 W/m): 97 dB
    Max. SPL (1 m): 127 dB
    Impedance: 8 ohms
    Frequency range: 45 - 200 Hz
    Dimensions (H x W x D): 580 x 460 x 590 mm
    Weight: 35 kg

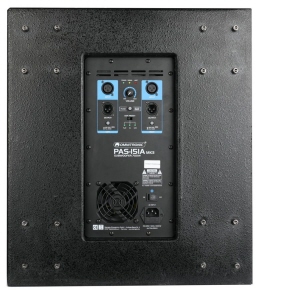

PAS-151A PRO-DSP active subwoofer 11039630

!
    Power supply: 230 V AC, 50 Hz
    Power consumption: 670 W (1/8 power)
    Rated power: 500 W RMS
    Program power: 1000 W
    Woofer: 38 cm (15")
    Signal input: XLR L/R
    Signal output: XLR L/R
    Sensitivity (1 W/m): 96 dB
    Max. SPL (1 m): 126 dB
    Frequency range: 45-120 Hz
    Crossover frequency: 80-200 Hz
    Acoustic loading: bassreflex
    Amplifier: Class D
    Dimensions (WxDxH): 680 x 460 x 590 mm
    Weight: 40 kg

PAS-152 Pro 2*15" sub 1000w/101dB 11039622

!
    Rated power: 1000 W RMS
    Program power: 2000 W
    Components: 2 x 38 cm woofer (2 x 15")
    Connections: 2 Speaker sockets
    Sensitivity (1 W/m): 101 dB
    Max. SPL (1 m): 133 dB
    Impedance: 4 ohms
    Frequency range: 40 - 200 Hz
    Dimensions (H x W x D): 610 x 957 x 482 mm
    Weight: 55 kg

PAS-181 Pro 18" sub 600w/98dB 11039623

!
    Rated power: 600 W RMS
    Program power: 1200 W
    Components: 45 cm woofer (18")
    Connections: 2 Speaker sockets
    Sensitivity (1 W/m): 98 dB
    Max. SPL (1 m): 129 dB
    Impedance: 8 ohms
    Frequency range: 40 - 180 Hz
    Dimensions (H x W x D): 680 x 560 x 685 mm
    Weight: 43 kg

PAS-181A PRO-DSP active subwoofer 11039631

!
    Power supply: 230 V AC, 50 Hz
    Power consumption: 670 W (1/8 power)
    Rated power: 600 W RMS
    Program power: 1200 W
    Woofer: 45 cm (18")
    Signal input: XLR L/R
    Signal output: XLR L/R
    Sensitivity (1 W/m): 96 dB
    Max. SPL (1 m): 126 dB
    Frequency range: 40-120 Hz C
    rossover frequency: 80-200 Hz
    Acoustic loading: bassreflex
    Amplifier: Class D
    Dimensions (WxDxH): 800 x 560 x 690 mm
    Weight: 50 kg

PAS-182 pro 18" sub 1300w/101dB 11039627

!
    Rated power: 1300 W RMS
    Program power: 2600 W
    Components: 2 x 45 cm woofer (2 x 18")
    Connections: 2 Speaker sockets
    Sensitivity (1 W/m): 101 dB
    Max. SPL (1 m): 135 dB
    Impedance: 4 ohms
    Frequency range: 30 - 120 Hz
    Dimensions (WxDxH): 1300 x 560 x 700 mm
    Weight: 83 kg

KM-112 Stage monitor coaxial wedge 250w/98dB 11038039

!
    Passive coaxial stage monitor for live and playback applications
    Bassreflex cabinet provides deep bass and high SPL
    Rugged MDF housing with scratch-resistant lacquer surface and impact-resistant steel grille
    Flange for stand installation
    Applications: standing, on a subwoofer or speaker stand, suspended, and as sidefill
    Rated power: 250 W RMS
    Program power: 500 W
    Components: 30 cm woofer (15"), 3.5 cm driver (1.35")
    Connections: 2 Speaker sockets
    Frequency range: 53-18000 Hz
    Max. SPL: 123 dB (1 m)
    Dispersion angle (HxV): 80° x 80°
    Dimensions (HxWxD): 460 x 500 x 340 mm

KM-112A Stage monitor coaxial wedge actief 300w/98dB 11038036

!
    Active 2-way coaxial stage monitor
    Class D/AB biamp power amplifier,
    Power output LF: 250 W RMS Power output HF: 50 W RMS
    Power supply: 115/230 V AC, 50/60 Hz ~
    Power consumption: 180 W (1/8 power)
    Components: 30 cm woofer (12"), 3.5 cm driver (1.35")
    Input: combination XLR/6.3 mm jack
    Parallel output: XLR
    Frequency range: 50-20000 Hz
    Max. SPL: 123 dB (1 m)
    Dispersion angle (HxV): 80° x 80°
    Dimensions (HxWxD): 460 x 500 x 340 mm

KM-115 Stage monitor, coaxial wedge 250w/99dB 11038040

!
    Passive coaxial stage monitor for live and playback applications
    Bassreflex cabinet provides deep bass and high SPL
    Rugged MDF housing with scratch-resistant lacquer surface and impact-resistant steel grille
    Flange for stand installation
    Rated power: 250 W RMS
    Program power: 500 W
    Components: 38 cm woofer (15"), 3.5 cm driver (1.35")
    Connections: 2 Speaker sockets
    Frequency range: 53-18000 Hz
    Max. SPL: 123 dB (1 m)
    Dispersion angle (HxV): 60° x 60°
    Dimensions (HxWxD): 540 x 600 x 370 mm

KM-115A Stage monitor, coaxial wedge 300w/99dB 11038037

!
    Active 2-way coaxial stage monitor
    Class D/AB biamp power amplifier
    Power output LF: 250 W RMS
    Power output HF: 50 W RMS
    Power supply: 115/230 V AC, 50/60 Hz ~
    Power consumption: 300 W (1/8 power)
    Components: 38 cm woofer (15"), 3.5 cm driver (1.35")
    Input: combination XLR/6.3 mm jack
    Parallel output: XLR
    Frequency range: 45-20000 Hz
    Max. SPL: 124 dB (1 m)
    Dispersion angle (HxV): 60° x 60°
    Dimensions (HxWxD): 510 x 600 x 370 mm
