Fane
UK Import - extra 25euro verzendkosten per 25Kg!!!
!

18"

!

FC-185F01

!
    for bass reflex or horn loaded designs
    Nominal Diameter: 18” / 457.2 mm
    Rated Impedance: 8 Ω
    Peak Power (6dB Crest Factor): 4000 w (A.E.S)
    Power handling: 1000 w (A.E.S)
    Sensitivity (1 w - 1 m): 96 dB
    Usable Frequency Range -6dB: 356 Hz - 2 kHz
    Voice Coil Diameter: 5.0" / 127 mm
    Net Weight: 28.85 lb / 13.09 Kg

FC-185ND01

!
    for bass reflex or horn loaded designs
    Nominal Diameter: 18” / 457.2 mm
    Rated Impedance: 8 Ω
    Peak Power (6dB Crest Factor): 4800 w (A.E.S)
    Power handling: 1200 w (A.E.S)
    Sensitivity (1 w - 1 m): 98,5 dB
    Usable Frequency Range -6dB: 30 Hz - 2000 Hz
    Voice Coil Diameter: 5.0" / 127 mm
    Net Weight: 25.35 lb / 11.5 Kg

Colossus PRIME 18XS

!
    For bass reflex and scoop enclosure designs. Also works well in horn loaded systems
    Nominal Diameter: 18” / 457.2 mm
    Rated Impedance: 8 Ω
    Peak Power (6dB Crest Factor): 4800 w (A.E.S)
    Power handling: 1200 w (A.E.S)
    Sensitivity (1 w - 1 m): 100 dB
    Usable Frequency Range -6dB: 35 Hz - 500 Hz
    Voice Coil Diameter: 4.0” / 101.6 mm
    Net Weight: 33.75 lb / 15.3 Kg

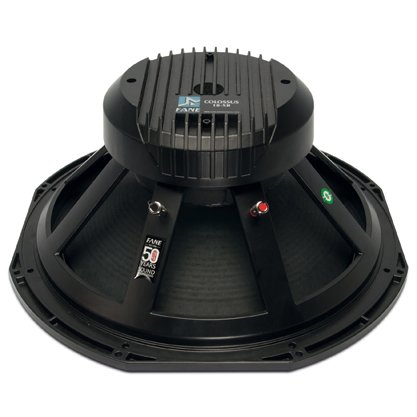

Colossus 18xb

!
    for sub-bass driver or in multi way systems
    Nominal Diameter: 18” / 457.2 mm
    Rated Impedance: 8 Ω
    Peak Power (6dB Crest Factor): 4000 w (A.E.S)
    Power handling: 1000 w (A.E.S)
    Sensitivity (1 w - 1 m): 99 dB
    Usable Frequency Range -6dB: 35 Hz - 1 kHz
    Voice Coil Diameter: 4.0” / 101.6 mm
    Net Weight: 31.29 lb / 14.2 Kg

Colossus 18SB

!
    for bass driver in multi way systems
    Nominal Diameter: 18” / 457.2 mm
    Rated Impedance: 8 Ω
    Peak Power (6dB Crest Factor): 4000 w (A.E.S)
    Power handling: 1000 w (A.E.S)
    Sensitivity (1 w - 1 m): 100 dB
    Usable Frequency Range -6dB: 35 Hz - 2,5 kHz
    Voice Coil Diameter: 4.0" / 101.6 mm
    Net Weight: 27.6 lb / 12.51 Kg

Colossus 18XBN

!
    for sub-bass driver either singly or in multi way systems
    Nominal Diameter: 18” / 457.2 mm
    Rated Impedance: 4 / 8 / 16 Ω
    Peak Power (6dB Crest Factor): 4000 w (A.E.S)
    Power handling: 1000 w (A.E.S)
    Sensitivity (1 w - 1 m): 99 dB
    Usable Frequency Range -6dB: 35 Hz - 1 kHz
    Voice Coil Diameter: 4.0” / 101.6 mm
    Net Weight: 17.52 lb / 7.95 kg

Colossus 18XLS

!
    for bass reflex and scoop enclosure designs.
    Nominal Diameter: 18” / 457.2 mm
    Rated Impedance: 8 Ω
    Peak Power (6dB Crest Factor): 4800 w (A.E.S)
    Power handling: 1200 w (A.E.S)
    Sensitivity (1 w - 1 m): 97 dB
    Usable Frequency Range -6dB: 28 Hz - 500 Hz
    Voice Coil Diameter: 4.0” / 101.6 mm
    Net Weight: 36.95 lb / 16.76 Kg

15"

!

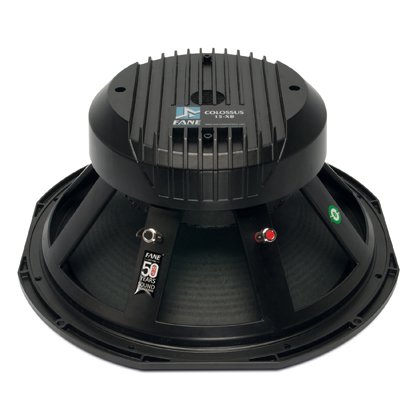

Colossus 15XB

!
    for sub-bass driver either singly or in multi way systems
    Nominal Diameter: 15” / 381 mm
    Rated Impedance: 4 / 8 / 16 Ω
    Peak Power (6dB Crest Factor): 3200 w (A.E.S)
    Power handling: 800 w (A.E.S)
    Sensitivity (1 w - 1 m): 99 dB
    Usable Frequency Range -6dB: 40 Hz - 1 kHz
    Voice Coil Diameter: 4.0” / 101.6 mm
    Net Weight: 27.28 lb / 12.4 kg

    Colossus 15XBN

    !
      forsub-bass driver either singly or in multi way systems.
      Nominal Diameter: 15” / 381 mm
      Rated Impedance: 4 / 8 / 16 Ω
      Peak Power (6dB Crest Factor): 3200 w (A.E.S)
      Power handling: 800 w (A.E.S)
      Sensitivity (1 w - 1 m): 99 dB
      Usable Frequency Range -6dB: 40 Hz - 1 kHz
      Voice Coil Diameter: 4.0” / 101.6 mm
      Net Weight: 15.10 lb / 6.85 kg

    Colossus 15-750BMN

    !
      for use in high-power two-way ported enclosures and as a high-output bass, bass/mid driver in multi way systems
      Nominal Diameter: 15” / 381 mm
      Rated Impedance: 8 Ω
      Peak Power (6dB Crest Factor): 3000 w (A.E.S)
      Power handling: 750 w (A.E.S)
      Sensitivity (1 w - 1 m): 100 dB
      Usable Frequency Range -6dB: 40 Hz - 3.0 kHz
      Voice Coil Diameter: 4.0" / 101.6 mm
      Net Weight: 14.99 lb / 6.80 Kg

      Sovereign Pro 15-500

      !
        for two-way ported enclosures
        Nominal Diameter: 15” / 381 mm
        Rated Impedance: 4 / 8 /16 Ω
        Peak Power (6dB Crest Factor): 2000 w (A.E.S)
        Power handling: 500 w (A.E.S)
        Sensitivity (1 w - 1 m): 99 dB
        Usable Frequency Range -6dB: 42 Hz - 3.5 kHz
        Voice Coil Diameter: 3.0" / 76.2 mm
        Net Weight: 17.52 lb / 7.95 Kg

      Sovereign Pro 15-600N

      !
        for use in high power two-way ported enclosures and as a high-output bass driver in multi way systems
        Nominal Diameter: 15” / 381 mm
        Rated Impedance: 8 Ω
        Peak Power (6dB Crest Factor): 2400 w (A.E.S)
        Power handling: 600 w (A.E.S)
        Sensitivity (1 w - 1 m): 99 dB
        Usable Frequency Range -6dB: 40 Hz - 4.5 kHz
        Voice Coil Diameter: 3.0" / 76.2 mm
        Net Weight: 11.46 lb / 5.2 Kg

      Sovereign 15-400LF

      !
        for monitors or bass guitar applications
        Nominal Diameter: 15” / 381 mm
        Rated Impedance: 8 Ω
        Peak Power (6dB Crest Factor): 1600 w (A.E.S)
        Power handling: 400 w (A.E.S)
        Sensitivity (1 w - 1 m): 97 dB
        Usable Frequency Range -6dB: 40 Hz - 4 kHz
        Voice Coil Diameter: 2.5" / 63.5 mm
        Net Weight: 12.34 lb / 5.6 Kg

      Sovereign 15-600LF

      !
        for medium to large vented enclosures
        Nominal Diameter: 15” / 381 mm
        Rated Impedance: 4 / 8 / 16 Ω
        Peak Power (6dB Crest Factor): 2400 w (A.E.S)
        Power handling: 600 w (A.E.S)
        Sensitivity (1 w - 1 m): 98.5 dB
        Usable Frequency Range -6dB: 38 Hz - 3.5 kHz
        Voice Coil Diameter: 3.0" / 76.2 mm
        Net Weight: 17.96 lb / 8.15 Kg

      Sovereign 15-250

      !
        for use in 2 way sealed enclosures.
        Nominal Diameter: 15” / 381 mm
        Rated Impedance: 8 Ω
        Peak Power (6dB Crest Factor): 1000 w (A.E.S)
        Power handling: 250 w (A.E.S)
        Sensitivity (1 w - 1 m): 97 dB
        Usable Frequency Range -6dB: 40 Hz - 3 kHz
        Voice Coil Diameter: 2.0" / 50.8 mm
        Net Weight: 7.38 lb / 3.35 Kg

      Sovereign 15-400

      !
        for small sealed floor wedges or medium sized vented boxes.
        Nominal Diameter: 15” / 381 mm
        Rated Impedance: 8 Ω
        Peak Power (6dB Crest Factor): 1600 w (A.E.S)
        Power handling: 400 w (A.E.S)
        Sensitivity (1 w - 1 m): 98.5 dB
        Usable Frequency Range -6dB: 40 Hz - 4 kHz
        Voice Coil Diameter: 2.5" / 63.5 mm
        Net Weight: 11.46 lb / 5.2 Kg

      Sovereign 15-500

      !
        for small sealed floor wedges or medium sized vented boxes, for medium to large vented enclosures..
        Nominal Diameter: 15” / 381 mm
        Rated Impedance: 8 Ω
        Peak Power (6dB Crest Factor): 2000 w (A.E.S)
        Power handling: 500 w (A.E.S)
        Sensitivity (1 w - 1 m): 99 dB
        Usable Frequency Range -6dB: 40 Hz - 4 kHz
        Voice Coil Diameter: 3.0" / 76.2 mm
        16.20 lb / 7.7 Kg

      12"

      !

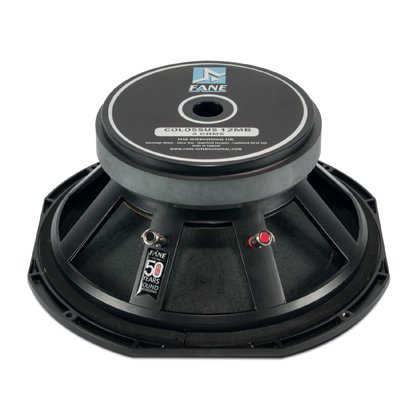

      Colossus 12MB

      !
        for mid bass driver in two-way ported enclosures and also as a bass driver in multi way systems
        Nominal Diameter: 12” / 304.8 mm
        Rated Impedance: 8 Ω
        Peak Power (6dB Crest Factor): 2000 w (A.E.S)
        Power handling: 500 w (A.E.S)
        Sensitivity (1 w - 1 m): 98 dB
        Usable Frequency Range -6dB: 40 Hz - 3.5 kHz
        Voice Coil Diameter: 3.0” / 76.2 mm
        Net Weight: 17.1 lb / 7.8 kg

      Colossus 12MBN

      !
        for bass mid driver in two-way ported enclosures, bass driver in multi way systems
        Nominal Diameter: 12” / 304.8 mm
        Rated Impedance: 8 Ω
        Peak Power (6dB Crest Factor): 2000 w (A.E.S)
        Power handling: 500 w (A.E.S)
        Sensitivity (1 w - 1 m): 98.5 dB
        Usable Frequency Range -6dB: 40 Hz - 4.0 kHz
        Voice Coil Diameter: 3.0” / 76.2 mm
        Net Weight: 9.47 lb / 4.3 kg

      Sovereign 12-300

      !
        for bass/ mid driver in medium sized vented enclosures, mid in small sealed designs
        Nominal Diameter: 12” / 304.8 mm
        Rated Impedance: 4 / 8 / 16 Ω
        Peak Power (6dB Crest Factor): 1200 w (A.E.S)
        Power handling: 300 w (A.E.S)
        Sensitivity (1 w - 1 m): 97.5 dB
        Usable Frequency Range -6dB: 45 Hz - 4.5 kHz
        Voice Coil Diameter: 2.5” / 63.5 mm
        Net Weight: 11.02 lb / 5.0 kg

      Sovereign 12-500LF

      !
        for use in 2 way ported enclosures
        Nominal Diameter: 12” / 304.8 mm
        Rated Impedance: 8 Ω
        Peak Power (6dB Crest Factor): 2000 w (A.E.S)
        Power handling: 500 w (A.E.S)
        Sensitivity (1 w - 1 m): 95 dB
        Usable Frequency Range -6dB: 38 Hz - 5 kHz
        Voice Coil Diameter: 2.5” / 63.5 mm
        Net Weight: 11.02 lb / 5.0 kg

      Sovereign Pro 12-500

      !
        for use in two-way ported enclosures
        Nominal Diameter: 12” / 304.8 mm
        Rated Impedance: 8 Ω
        Peak Power (6dB Crest Factor): 2000 w (A.E.S)
        Power handling: 500 w (A.E.S)
        Sensitivity (1 w - 1 m): 97.5 dB
        Usable Frequency Range -6dB: 45 Hz - 4.5 kHz
        Voice Coil Diameter: 3.0” / 76.2 mm
        Net Weight: 16.5 lb / 7.5 kg

      Sovereign Pro 12BM-500

      !
        for two way ported enclosures and for horn loaded / bandpass applications .
        Nominal Diameter: 12” / 304.8 mm
        Rated Impedance: 8 Ω
        Peak Power (6dB Crest Factor): 2000 w (A.E.S)
        Power handling: 500 w (A.E.S)
        Sensitivity (1 w - 1 m): 95 dB
        Usable Frequency Range -6dB: 45 Hz - 3.5 kHz
        Voice Coil Diameter: 3.0" / 76.2 mm
        Net Weight: 19.18 lb / 8.7 Kg

      FC-123F01

      !
        for bass applications or 2 - way ported enclosures.
        Nominal Diameter: 12” / 304.8 mm
        Rated Impedance: 8 Ω
        Peak Power (6dB Crest Factor): 2000 w (A.E.S)
        Power handling: 500 w (A.E.S)
        Sensitivity (1 w - 1 m): 97.5 dB
        Usable Frequency Range -6dB: 45 Hz - 3.0 kHz
        Voice Coil Diameter: 3.0" / 76.2 mm
        Net Weight: 16.76 lb / 7.6 Kg

      FC-123F02

      !
        for bass applications or 2 - way ported enclosures
        Nominal Diameter: 12” / 304.8 mm
        Rated Impedance: 8 Ω
        Peak Power (6dB Crest Factor): 2200 w (A.E.S)
        Power handling: 550 w (A.E.S)
        Sensitivity (1 w - 1 m): 98 dB
        Usable Frequency Range -6dB: 40 Hz - 4.0 kHz
        Voice Coil Diameter: 3.0" / 76.2 mm
        Net Weight: 17.2 lb / 7.8 Kg

      10"

      !

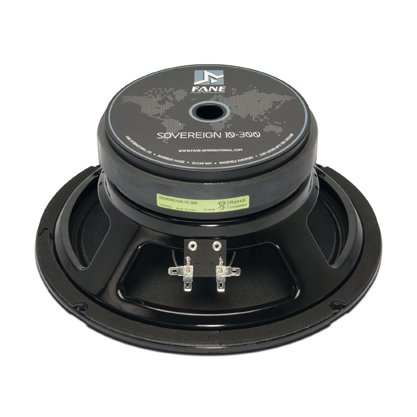

      Sovereign 10-300

      !
        for use in small 2 way ported enclosuresNominal
        Diameter: 10” / 254 mm
        Rated Impedance: 4 / 8 / 16 Ω
        Peak Power (6dB Crest Factor): 1200 w (A.E.S)
        Power handling: 300 w (A.E.S)
        Sensitivity (1 w - 1 m): 97.5 dB
        Usable Frequency Range -6dB: 45 Hz - 5 kHz
        Voice Coil Diameter: 2.5” / 63.5 mm
        Net Weight: 10.57 lb / 4.8 kg

      Sovereign 10-125

      !
        for use as a mid/bass driver in sealed boxes and in medium-sized vented boxes.
        Nominal Diameter: 10” / 254 mm
        Rated Impedance: 8 Ω
        Peak Power (6dB Crest Factor): 500 w (A.E.S)
        Power handling: 125 w (A.E.S)
        Sensitivity (1 w - 1 m): 96 dB
        Usable Frequency Range -6dB: 50 Hz - 4 kHz
        Voice Coil Diameter: 1.5” / 38.1 mm
        Net Weight: 4.29 lb / 1.95 kg

        Sovereign Pro 10-300

        !
          for use in two-way ported enclosures
          Nominal Diameter: 10” / 254 mm
          Rated Impedance: 4 / 8 / 16 Ω
          Peak Power (6dB Crest Factor): 1200 w (A.E.S)
          Power handling: 300 w (A.E.S)
          Sensitivity (1 w - 1 m): 98 dB
          Usable Frequency Range -6dB: 45 Hz - 4 kHz
          Voice Coil Diameter: 2.5” / 63.5 mm
          Net Weight: 11.02 lb / 5 kg

        Sovereign Pro 10BM

        !
          for use in two-way ported enclosures
          Nominal Diameter: 10” / 254 mm
          Rated Impedance: 8 Ω
          Peak Power (6dB Crest Factor): 1600 w (A.E.S)
          Power handling: 400 w (A.E.S)
          Sensitivity (1 w - 1 m): 93 dB
          Usable Frequency Range -6dB:40 Hz - 3 kHz
          Voice Coil Diameter: 2.5” / 63.5 mm
          Net Weight: 15.65 lb / 7.1 Kg

        8"

        !

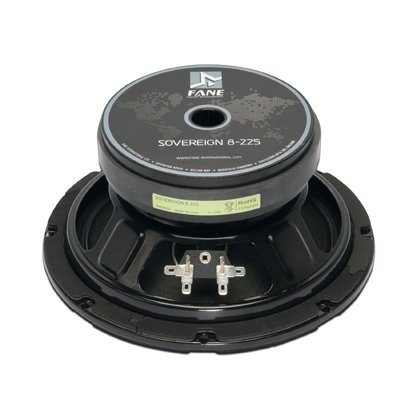

        Sovereign 8-225 mk2

        !
          for mid in small sealed boxes and as a mid/ bass driver in vented boxes.
          Nominal Diameter: 8” / 203.2 mm
          Rated Impedance: 8 Ω
          Peak Power (6dB Crest Factor): 900 w (A.E.S)
          Power handling: 225 w (A.E.S)
          Sensitivity (1 w - 1 m): 97.5 dB
          Usable Frequency Range -6dB: 55 Hz - 5 kHz
          Voice Coil Diameter: 2.0” / 50.8 mm
          Net Weight: 6.06 lb / 2.75 kg

        Sovereign 8-125

        !
          for mid in small sealed boxes and as a mid/ bass driver in vented boxes.
          Nominal Diameter: 8” / 203.2 mm
          Rated Impedance: 8 Ω
          Peak Power (6dB Crest Factor): 500 w (A.E.S)
          Power handling: 125 w (A.E.S)
          Sensitivity (1 w - 1 m): 94 dB
          Usable Frequency Range -6dB: 60 Hz - 7 kHz
          Voice Coil Diameter: 1.5” / 38.1 mm
          Net Weight: 3.85 lb / 1.75 kg

        Sovereign Pro 8MN

        !
          for line array and small sealed enclosures.
          Nominal Diameter: 8” / 203.2 mm
          Rated Impedance: 4 /8 / 16 Ω
          Peak Power (6dB Crest Factor): 1000 w (A.E.S)
          Power handling: 250 w (A.E.S)
          Sensitivity (1 w - 1 m): 99 dB
          Usable Frequency Range -6dB: 90 Hz - 5 kHz
          Voice Coil Diameter: 2.0” / 50.8 mm
          Net Weight: 4.30 lb / 1.95 kg

        6"

        !

        Sovereign 6-100

        !
          for mid range driver in a small sealed box or as a mid / bass driver in vented boxes.
          Nominal Diameter: 6” / 152.4 mm
          Rated Impedance: 8 Ω
          Peak Power (6dB Crest Factor): 400 w (A.E.S)
          Power handling: 100 w (A.E.S)
          Sensitivity (1 w - 1 m): 93 dB
          Usable Frequency Range -6dB: 60 Hz - 7 kHz
          Voice Coil Diameter: 1.5” / 38.1 mm
          Net Weight: 3.63 lb / 1.65 kg

        5"

        !
