In-Ear monitoring
!

LD Systems

!

MEI ONE1/2/3 in-ear systeem

!
Opgeven bij bestellen mei one1 of mei one2 of mei one3
    Frequentieband: 863.700 Mhz
    Zender: MEI ONE T
    Ontvanger: MEI ONE BPR
    Frequentiebereik: 80Hz‑ 16kHz
    Simultaan gebruik: 3
    Zendsterkte: 10mW
    Ingangen: 2x XLR‑jack (combo)
    Modes: Stereo, mono
    Hoofdtelefoon: Ja
    Accessoires incl.: 19" Rackmounts, In‑ear phones,adapter

MEI100G2 in-ear systeem

!
    Frequentieband: 863.000 ~ 865.000 Mhz
    Zender: MEI100G2T
    Ontvanger: MEI100G2BPR
    Earphones: MEI100EP
    Frequentiebereik: 80Hz‑ 15kHz
    Kanalen: 96 (8 groepen met 12 kanalen)
    Zendsterkte: 10mW
    Ingangen: 2x XLR‑jack (combo)
    Modes: Stereo, mono
    Hoofdtelefoon: Ja
    Accessoires incl.: In‑ear phones, adapter, antenne, rackmount

MEI1000G2 in-ear systeem

!
    Frequentieband: 863.000 ~ 865.000 Mhz
    Frequentieband 2: 823.000 ~ 832.000 Mhz
    Zender: MEI1000G2T
    Ontvanger: MEI1000G2BPR
    Earphones: MEI1000EP
    Frequentiebereik: 60Hz‑ 16kHz
    Kanalen: 96 (8 groepen van 12 kanalen)
    Ingangen: 2x XLR‑jack (combo)
    Modes: Stereo, mono
    Hoofdtelefoon: Ja
    Accessoires incl.: Antenne, In‑ear phones,adapter

SennHeiser

!

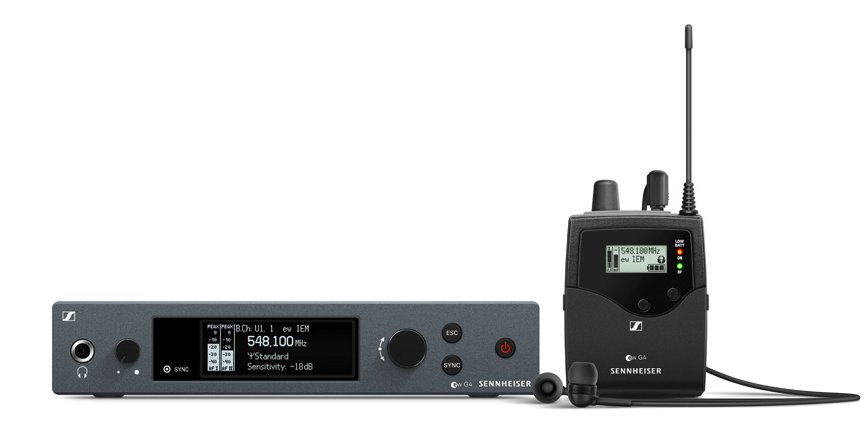

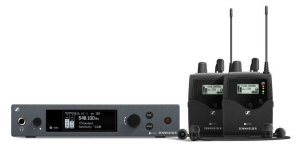

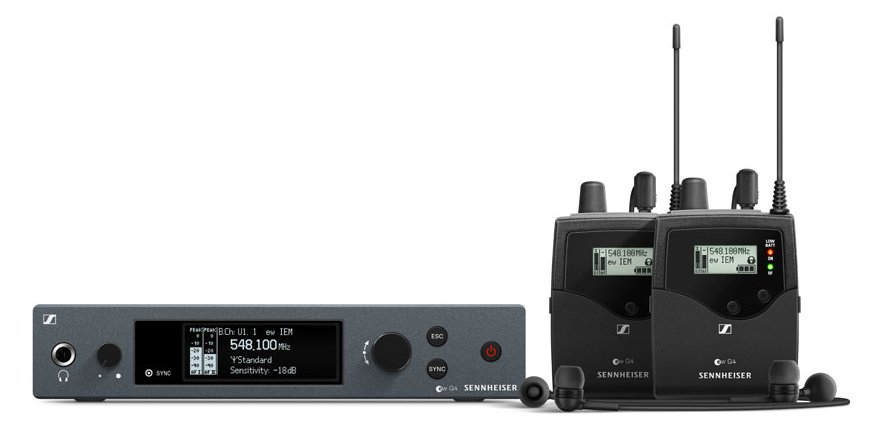

ew300 iem G3 in-ear-monitor set Blok A, B of D

!
Opgeven bij bestellen: blokA of blokB of blokC
    Frequentieband: 516.000 ~ 558.000Mhz
    Zender: SR300IEM G3
    Ontvanger: EK300IEM G3
    Earphones: IE4
    Frequentiebereik: 25Hz‑ 15kHz
    Simultaan gebruik: 16 frequenties per groep
    Bandbreedte: 42Mhz
    Zendsterkte: 10/30mW
    Ingangen: 2x XLR‑jack (combo)
    Modes: Stereo, focus
    Limiter: Ja
    Hoofdtelefoon: Ja
    DSP: 5‑Bands EQ
    Accessoires incl.: 2x UHF antenne, voeding, GA3 rackmountkit

AKG

!

IVM4500 In-Ear monitor systeem

!
    Frequentieband: 500.1 ‑ 530.5Mhz
    Zender: SST4500 IEM
    Ontvanger: SPR4500 IEM
    Earphones: IP2
    Frequentiebereik: 35Hz‑ 20kHz
    Simultaan gebruik: 14 frequenties per groep
    Bandbreedte: 30.5Mhz
    Zendsterkte: 100mW (max. , afhankelijk per regio)
    Zendbereik: 20 meter
    Ingangen: 2x XLR‑jack (combo)
    Uitgangen: 2x Jack 6,3mm (bal) / 1x Jack 6.3mm (unbal)
    Modes: Stereo, mono, dual mono
    Hoofdtelefoon: Ja
    DSP: Compressor. equalizer, low‑cut
    Accessoires incl.: UHF antenne, voeding, 19" rackmountkit

Omnitronic

!

IEM-1000 In-ear monitoring set 14013240

!
    Carrier frequency: UHF 823.000 - 832.000 MHz
    Receiving groups: 10, with 6 fixed frequencies each
    Modulation: F3F
    Frequency response: 40 - 16000 Hz (± 3 dB)
    Frequency stability: ± 0.005 %
    S/N ratio: >105 dB
    Dynamic range: >96 dB T.H.D.: <0.4 % at 1 kHz
    Coverage: 100 m (with line-of-sight)
    Transmitter Antenna: BNC, detachable
    Maximum deviation: ± 48000 Hz
    Signal inputs: 2 x balanced combo XLR/6.3 mm jack
    Power supply: 100-240 V AC, 50/60 Hz ~ via supplied power unit
    Power consumption: 5 W
    Dimensions (LxWxH): 213 x 210 x 46 mm
    STR-1000 Pocket Receiver
    Antenna: Built-in
    System: Non-diversity, one channel
    Earphones output: 3.5 mm stereo jack
    Power supply: 2 x 1.5 V mignon batteries (type AA)
    Current consumption: Approx. 185 mA Battery life: Approx. 7 hours, depending on the volume
    Dimensions (LxWxH): 108 x 66 x 22 mm

RELACART PM-160 in-ear monitor system 13055217

!
    Set includes a stationary stereo transmitter and a portable pocket receiver with earphones in a practical transport case
    2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
    Parallel operation of up to 9 monitor ways is possible without any interference
    Diversity technology for high reception quality
    Pilot tone technology (PLL) for interference-free reception
    Operation range with line of sight approx. 100 meters
    Stereo or mono/mix mode
    Lock function for prevents undesired changes to settings
    Transmitter with LCD, 2 line inputs (XLR/6.3 mm jack) and 2 feed-through outputs (loop)
    Receiver in sturdy all-metal housing with 2 antennas, soft-touch controls and OLED display
    Applicable for touring }
    483 mm rack installation possible with supplied mounting brackets
    2 jack cables and power unit included
    Transmitter and receiver also available separately
    Can also be used as audio transmission system with extremely low latency
    License-free and approved in the EU (please check Duplex Gap on a country-by-country basis)
    System: Diversity, 1 channel Carrier frequency: UHF 823-832 and 863-865 Receiving frequencies: 32, preset
    Switching bandwidth: 11 MHz Transmitter: Antenna: BNC, removable
    Deviation: ± 68 kHz
    Frequency stability: ± 0.0005 %
    T.H.D.: <0.7 % at 1 kHz
    S/N ratio: >105 dB
    Modulation method: FM, stereo Coverage: 100 m (with line-of-sight)
    Frequency response: 45-18000 Hz
    Signal inputs: 2 x balanced combo jack XLR/6.3 mm jack Feed-through outputs: 2 x 6.3 mm jack, unbalanced
    Power supply: 12 V DC, 500 mA via supplied power unit connected to 100-240 V AC, 50/60 Hz ~ Power consumption: 12 W Dimensions: 210 x 43 x 225 mm Rack installation with 1 U with supplied mounting brackets
    Weight: 1.2 kg
    Receiver: Antennas: Integrated
    Deviation: ± 68 kHz
    Frequency stability: ± 0.0005 % T.H.D: <0.7 % at 1 kHz S/N ratio: >105 dB
    Modulation method: FM, stereo Coverage: 80 m (with line-of-sight)
    Frequency response: 45-18000 Hz (± 1 dB)
    Sensitivity: 6 dBµV (S/N >60 dB at 25 deviation)
    Audio output: 3.5 mm stereo jack
    Power supply: 2 x 1.5 V battery (type AA) Current consumption: approx. 185 mA
    Battery life: approx. 7 hours, depending on the volume
    Dimensions (WxDxH): 118 x 66 x 22 mm
    Weight: 190 g
