Truss 4-kant
!

4-kant ALUTRUSS QUADLOCK 6082 29cm

!
QUADLOCK 6082 is a 4-point truss system made of aluminum.
The individual elements are connected via four cones, pivots and pins. QUADLOCK 6082 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for even higher loads.
The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed.
The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.
The four main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight.
The braces have a diameter of 16 mm with 2 mm wall thickness and leave enough space for installing couplers, hooks and clamps.
With 290 mm outer dimensions, QUADLOCK QQTR is a stable truss system for higher loads and extended durability.
This system is mainly designed for intense use in stage installations, fair installations, event installations but also for permanent installations in
discotheques and theatres.
Its polished surface makes this universal system a real eyecatcher.
Due to its wide range of standard system lengths, corners and accessory, this system is highly versatile and offers unlimited design possibilities.
The production of this truss system is TUV-monitored.
The load table as calculation base can be downloaded from the Internet before buying the product!
Please note: this truss system must never be combined with other systems!

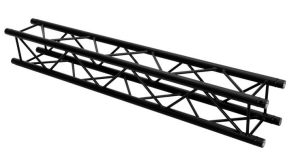

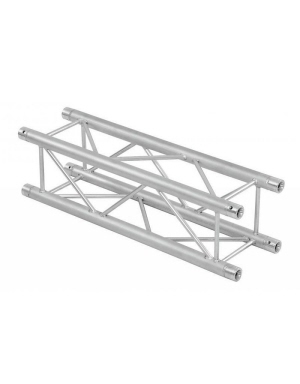

6082-500 Straight Truss 50cm 60306500

!
    Lengte 0,5mtr.
    Specificaties:
    - Buiten Maat Truss: 29x29cm
    - Algemene buisdiameter: 50mm
    - Wanddikte belangrijkste buis: 2mm
    - Buisdiameter schoren: 16mm
    - Wanddikte schoren: 2mm
    - Legering: EN-AW 6082 T6 (AlMgSi1 T6)
    - Las materiaal: AlMg 5
    - Las techniek: TIG-welding

6082-1000 Straight Truss 100cm 60306505

!
Als boven maar nu met:
    Lengte 1,0mtr.

6082-1500 Straight Truss 150cm 60306508

!
Als boven maar nu met:
    Lengte 1,5mtr.

6082-2000 Straight Truss 200cm 60306510

!
Als boven maar nu met:
    Lengte 2,0mtr.

6082-2500 Straight Truss 250cm 60306515

!
Als boven maar nu met:
    Lengte 2,5mtr.

6082-3000 Straight Truss 300cm 60306520

!
Als boven maar nu met:
    Lengte 3,0mtr.

6082-4000 Straight Truss 400cm 60306525

!
Als boven maar nu met:
    Lengte 4,0mtr.

6082-5000 Straight Truss 500cm 60306530

!
Als boven maar nu met:
    Lengte 5,0mtr.

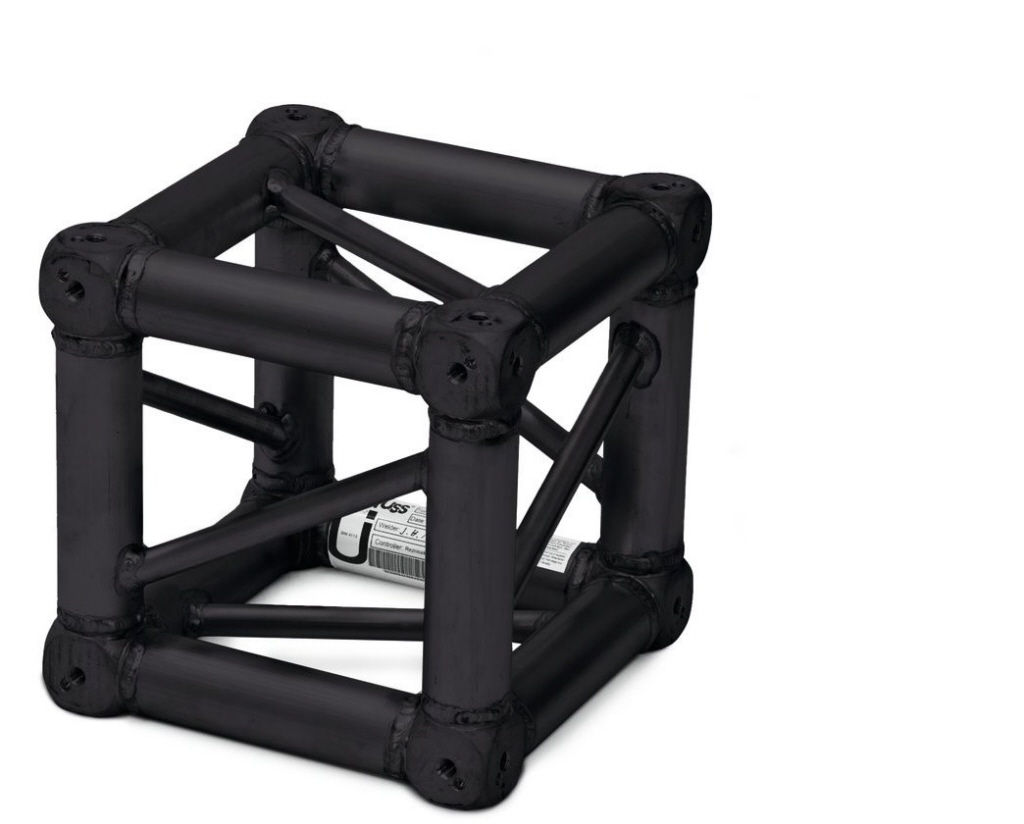

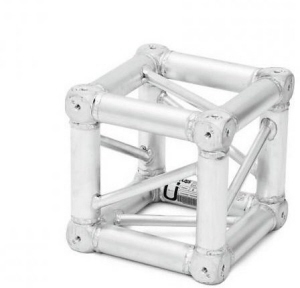

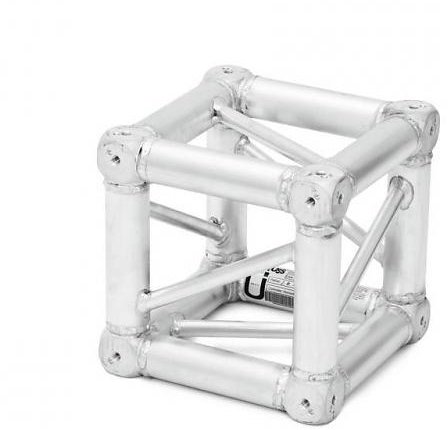

6082 boxcorner 60306594

!
    90° box corner

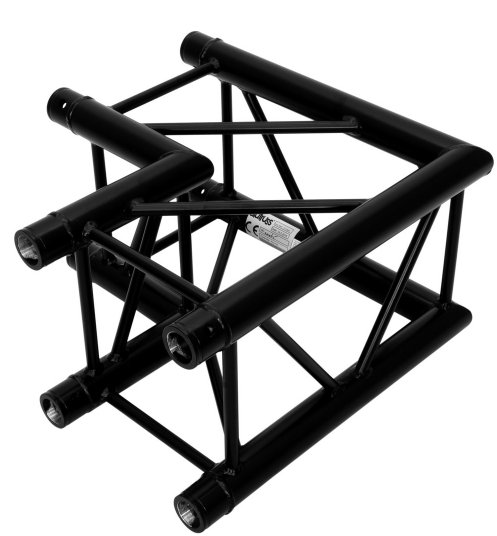

6082 2-Weg hoekstuk C21 90° 60306550

!
    Hoekstuk 90°

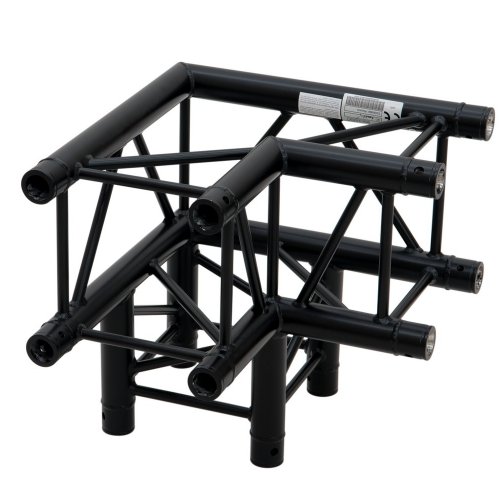

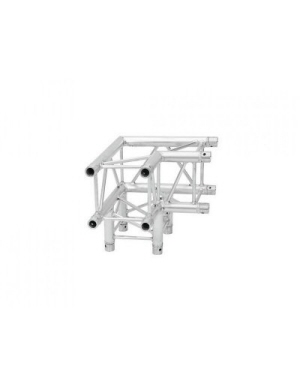

6082L-30 3-Weg hoekstuk L30 90° 60306565

!
    3-weg T-hoek 90°

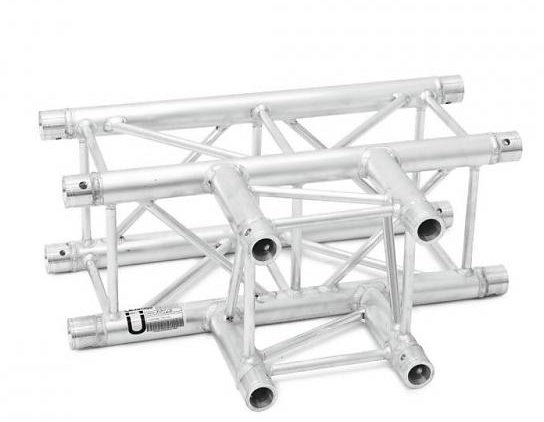

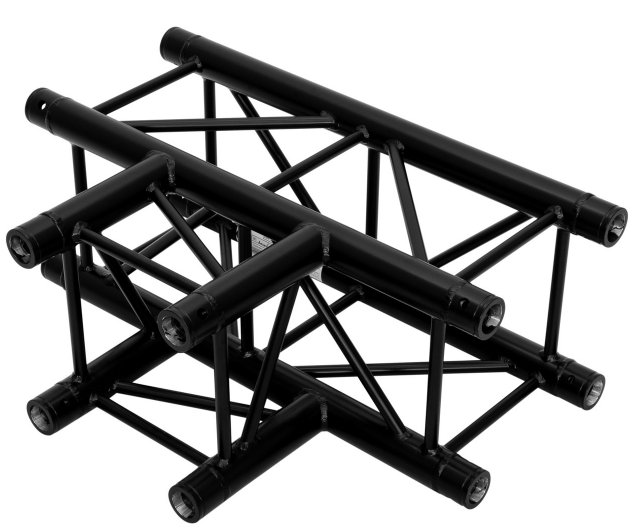

6082T-35 3-Weg hoekstuk T35 90° 60306570

!
    T-stuk 90°

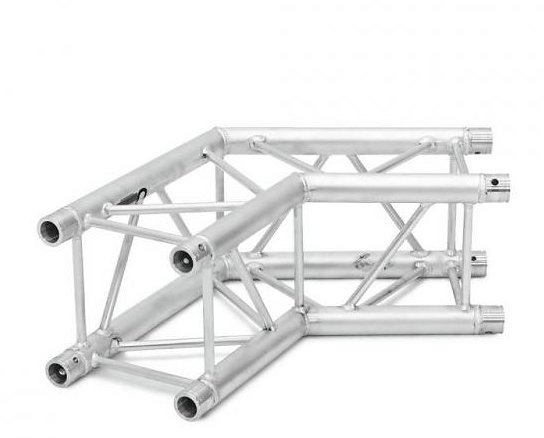

6082C-22 2-weg hoekstuk C22 120° 60306555

!
    Hoekstuk 120°

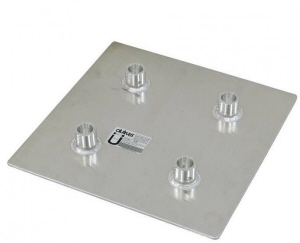

6082 Baseplate 60302996

!
    End of base plaat 50x50cm

6082 leveling pedestral QNF-300 6030299C

!
    Stelpoot
