3-kant Alutruss TRILOCK 6082 29cm

!
TRILOCK 6082 is a 3-point truss system made of aluminum.
The individual elements are connected via three cones, pivots and pins. TRILOCK 6082 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for even higher loads.
The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed.
The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.
The three main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight.
The braces have a diameter of 16 mm with 2 mm wall thickness and leave enough space for installing couplers, hooks and clamps.
With 290 and 257 mm outer dimensions, TRILOCK QTTR is a stable truss system for higher loads and extended durability.
This system is mainly designed for intense use in stage installations, fair installations, event installations but also for permanent installations in
discotheques and theatres.
Its polished surface makes this universal system a real eyecatcher.
Due to its wide range of standard system lengths, corners, circles and accessory, this system is highly versatile and offers unlimited design possibilities.
The production of this truss system is TUV-monitored. The load table as calculation base can be downloaded from the Internet before buying the product!
Please note: this truss system must never be combined with other systems!

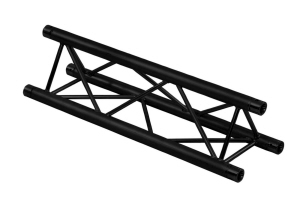

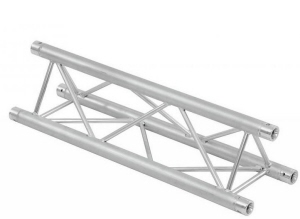

6082-500, Straight Truss 50 cm 60302355

!
    Lengte 0,5mtr
    Specificaties:
    - Buiten Maat Truss: breed 29cm x hoog 25,7cm
    - Algemene buisdiameter: 50mm
    - Wanddikte belangrijkste buis: 2mm
    - Buisdiameter schoren: 16mm
    - Wanddikte schoren: 2mm
    - Legering: EN-AW 6082 T6 (AlMgSi1 T6)
    - Las materiaal: AlMg 5
    - Las techniek: TIG-welding

6082-1000, Straight Truss 100 cm 60302358

!
Als boven maar nu met:
    Lengte 1,0mtr.

6082-1500, Straight Truss 150 cm 60302359

!
Als boven maar nu met:
    Lengte 1,5mtr.

6082-2000, Straight Truss 200 cm 60302360

!
Als boven maar nu met:
    Lengte 2,0mtr.

6082-2500, Straight Truss 250 cm 60302362

!
Als boven maar nu met:
    Lengte 2,5mtr.

6082-S3000, Straight Truss 300 cm 60302364

!
Als boven maar nu met:
    Lengte 3,0mtr.

6082-4000, Straight Truss 400 cm 60302366

!
Als boven maar nu met:
    Lengte 4,0mtr.

6082-5000, Straight Truss 500 cm 60302368

!
Als boven maar nu met:
    Lengte 5,0mtr

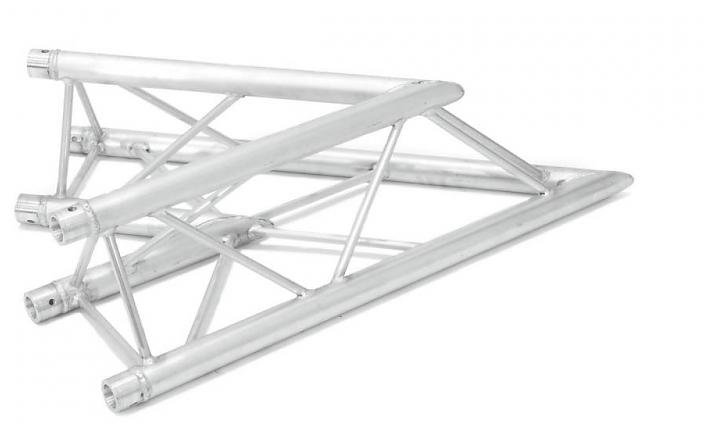

6082AC-19 2-way corner 45° 60302380

!
    Hoekstuk 45°

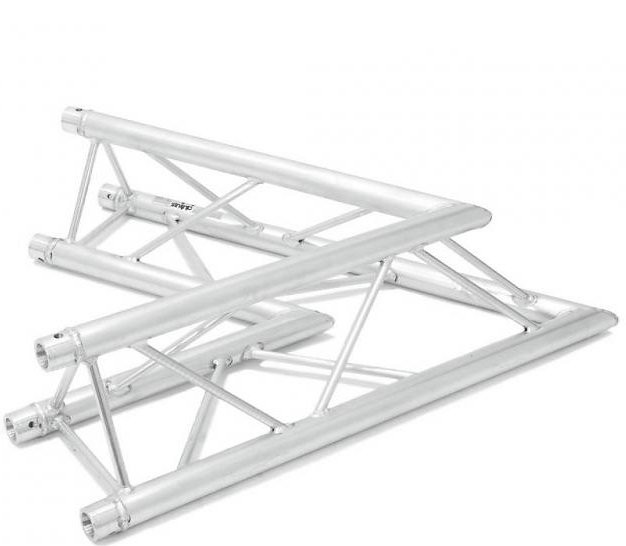

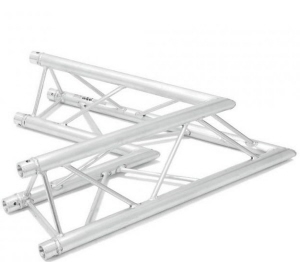

6082AC-20 2-way corner 60° 60302383

!
    Hoekstuk 60°

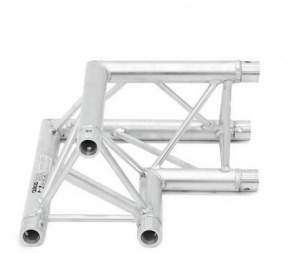

6082AC-21 2-way corner 90° 60302386

!
    Hoekstuk 90°

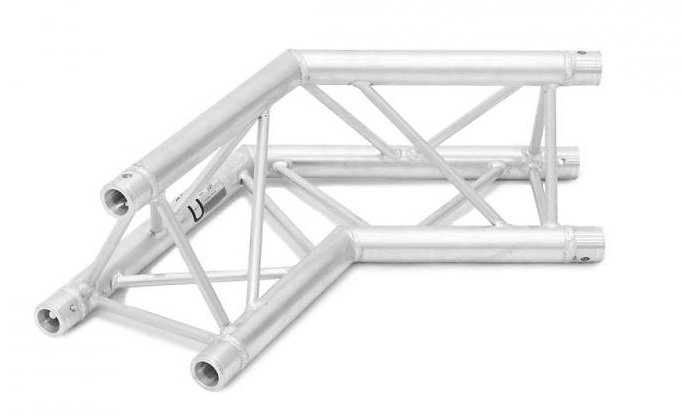

6082AC-22 2-way corner 120° 60302388

!
    Hoekstuk 120°

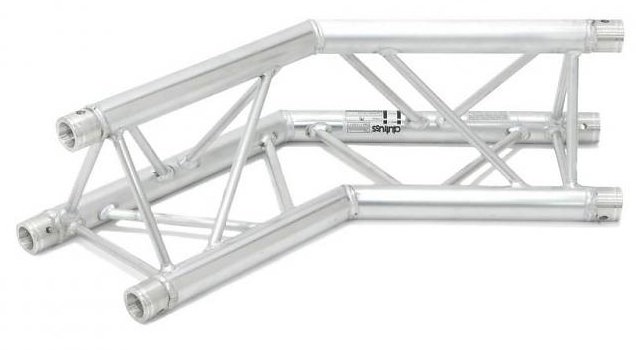

6082AC-23 2-way corner 135° 60302390

!
    Hoekstuk 135°

6082AC-24 2-way corner 90° 60302392

!
    Hoekstuk 90°

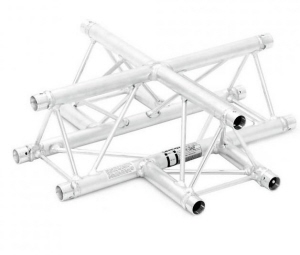

6082AC-41 4-way cross 60302412

!
    4-weg hoekstuk 90°

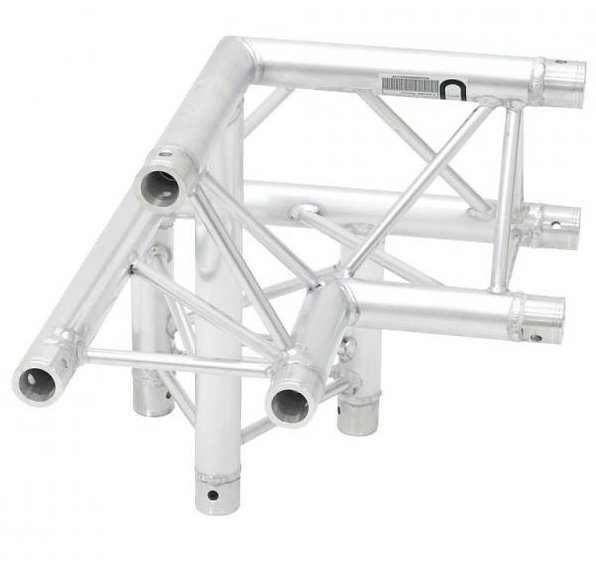

6082AL-31 3-way corner right 60302396

!
    3-weg rechter hoekstuk 90°

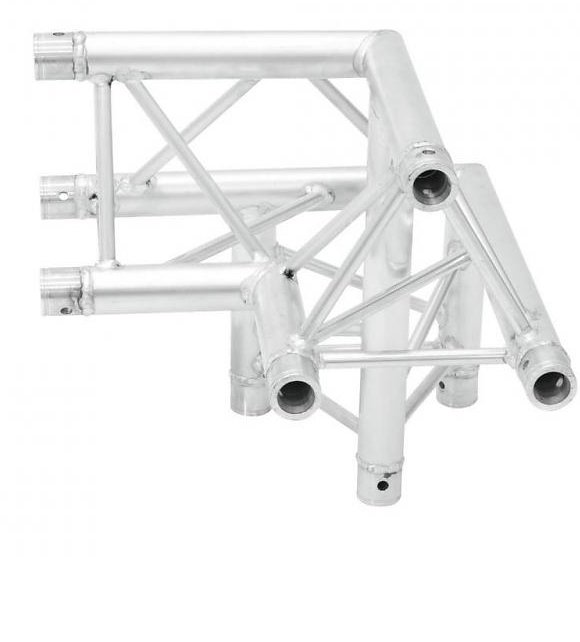

6082AL-32 3-way corner left 60302398

!
    3-weg linker hoekstuk 90°

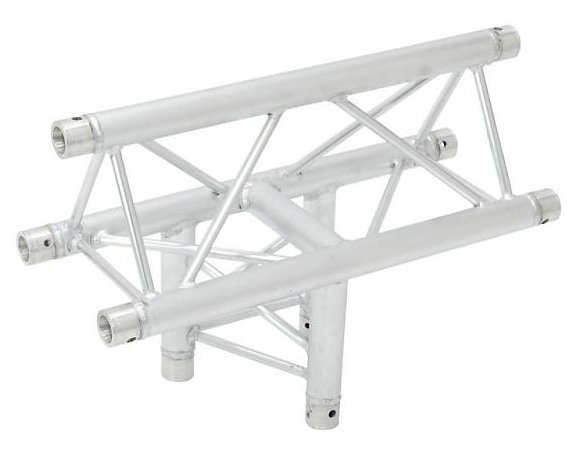

6082AT-38 3-way T-piece down 60302410

!
    3-weg T-stuk 90°

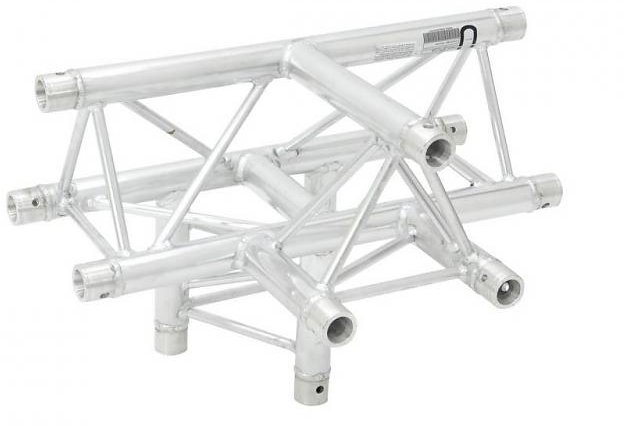

6082AT-43 4-way T-piece down 60302416

!
    4-weg T-stuk 90°

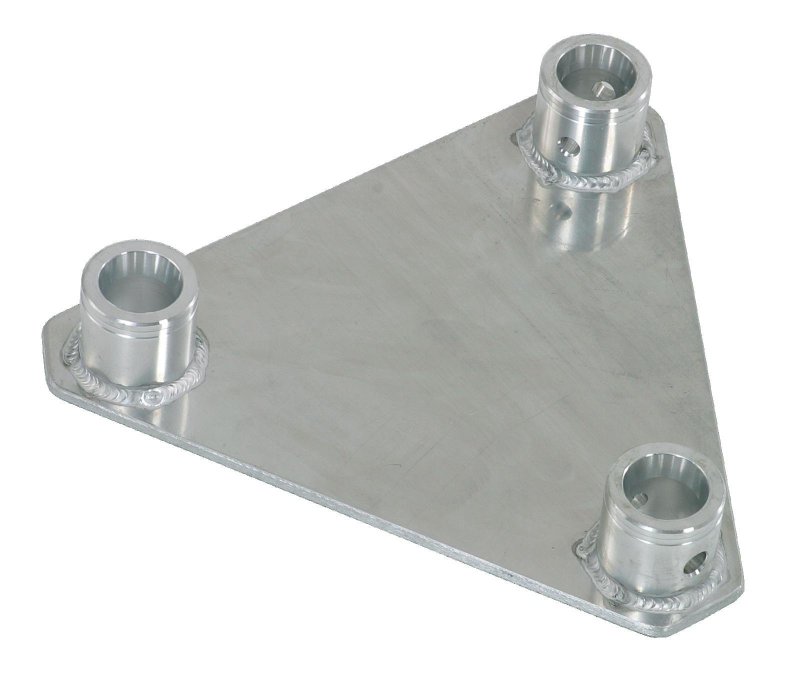

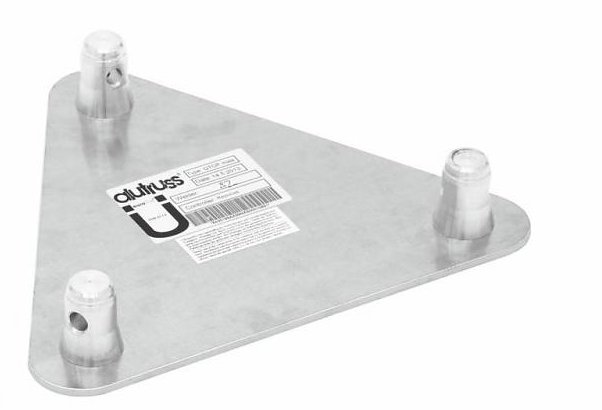

6082 base/wall-plate QTG-male 6030189A

!
    End of base plaat 32,5x32,5 cm

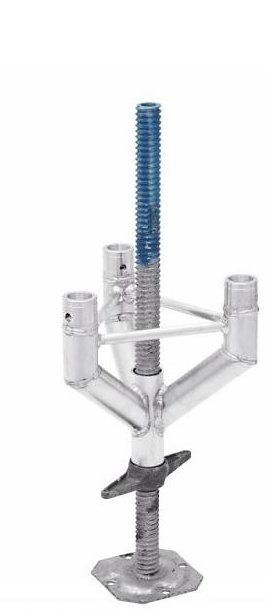

6082 leveling pedestral TNF-300 6030189C

!
    Stelpoot

6082 circle d=2m 60302450

!
    Cirkel 2mtr doorsnee

6082 circle d=3m 60302455

!
    Cirkel 3mtr doorsnee

6082 circle d=5m 60302465

!
    Cirkel 5mtr doorsnee
