BMS

UK Import - extra 25euro verzendkosten per 25Kg!!!

Levertijd ± 18 werkdagen

!

18"

!

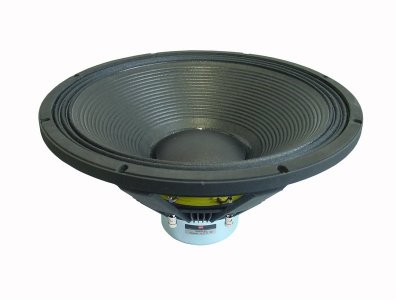

18N830 V2

!
    Neodymium Magnet System
    Double treated Cone for Water Protection
    Triple Aluminum demodulating Rings for ultra low Distortion
    Optimal for high Output
    Application Subwoofer
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 1100 W
    Sensitivity (1 W / 1 m): 96 dB
    Frequency response: 20 - 200 Hz
    Voice Coil Diameter: 101.6 mm / 4"
    Overall Diameter: 458 mm
    Mounting Holes Diameter: 8 x 8.5 mm
    Bolt Circle Diameter: 440 mm
    Baffle cut-out Diameter: 414 mm
    Overall depth: 228 mm
    Net Weight: 7.72 kg

18N840 V2

!
    Neodymium Magnet System
    Double treated Cone for Water Protection
    Triple Aluminum demodulating Rings for ultra low Distortion
    Optimal for high Output Subwoofers
    Light Weight Carbon Fiber Diaphragm
    Application Subwoofer
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 1200 W
    Sensitivity (1 W / 1 m): 95 dB
    Frequency response: 20 - 200 Hz
    Voice Coil Diameter: 101.6 mm / 4"
    Overall Diameter: 458 mm
    Mounting Holes Diameter: 8 x 8.5 mm
    Bolt Circle Diameter: 440 mm
    Baffle cut-out Diameter: 414 mm
    Overall depth: 237 mm Net
    Weight: 9.8 kg

18N850 V2

!
    Neodymium Magnet System
    Double treated Cone for Water Protection
    Triple Aluminum demodulating Rings for ultra low Distortion
    Optimal for high Output Subwoofers
    Light Weight Carbon Fibre Cone Specifications:
    Application Infra-Subwoofer
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 1200 W
    Sensitivity (1 W / 1 m): 95 dB
    Frequency response: 20 - 200 Hz
    Voice Coil Diameter: 101.6 mm / 4"
    Overall Diameter: 458 mm
    Mounting Holes Diameter: 8 x 8.5 mm
    Bolt Circle Diameter: 440 mm
    Baffle cut-out Diameter: 414 mm
    Overall depth: 237 mm
    Net Weight: 9.8 kg

18N862 4 / 8 ohm

!
    Neodymium magnet system
    Double treated cone for water protection
    Triple aluminum demodulating rings for ultra low distortion
    Light Weight Carbon Fiber Diaphragm
    Optimal for high output Subwoofers
    Application Infra-Subwoofer
    Nominal Impendance: 4 of 8 Ohm
    Power handling AES noise: 1500 W
    Sensitivity (1 W / 1 m): 95 dB
    Frequency response: 20 - 200 Hz
    Voice Coil Diameter: 101.6 mm / 4"
    Overall Diameter: 458 mm
    Mounting Holes Diameter: 8 x 8.5 mm
    Bolt Circle Diameter: 440 mm
    Baffle cut-out Diameter: 412 mm
    Overall depth: 250 mm
    Net Weight: 10.5 kg

18S430 V2

!
    Double treated Cone for Water Protection
    Triple Aluminum demodulating Rings for ultra low Distortion
    Optimal for high output Subwoofers
    Application Subwoofer
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 1200 W
    Sensitivity (1 W / 1 m): 96 dB
    Frequency response: 20 - 200 Hz
    Voice Coil Diameter: 101.6 mm / 4"
    Overall Diameter: 458 mm
    Mounting Holes Diameter: 8 x 8.5 mm
    Bolt Circle Diameter: 440 mm
    Baffle cut-out Diameter: 414 mm
    Overall depth: 218 mm
    Net Weight: 12.8 kg

15"

!

15N850

!
    Neodymium Magnet System
    Double treated Cone for Water Protection
    Triple Aluminum demodulating Rings for ultra low Distortion
    Optimal for high Output Subwoofers
    Light Weight Carbon Fibre Cone Specifications:
    Application Subwoofer
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 1200 W
    Sensitivity (1 W / 1 m): 95 dB
    Frequency response: 20 - 200 Hz
    Voice Coil Diameter: 101.6 mm / 4"
    Overall Diameter: 388 mm
    Mounting holes diameter 8 x (7 x 8) mm
    Bolt circle diameter 371 mm
    Baffle cut-out diameter 357 mm
    Overall depth 200 mm
    Net weight 8.55 kg

15N620

!
    Neodymium Magnet System
    Triple Aluminum demodulating Rings for ultra low Distortion
    Optimal for compact 2- or 3-way Systems
    Application Subwoofer
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 500 W
    Sensitivity (1 W / 1 m): 98 dB
    Frequency response: 35 - 2500 Hz
    Voice Coil Diameter: 77 mm / 3"
    Overall Diameter: 388 mm
    Mounting holes diameter 8 x (7 x 8) mm
    Bolt circle diameter 371 mm
    Baffle cut-out diameter 358 mm
    Overall depth 174 mm
    Net weight 3.7 kg

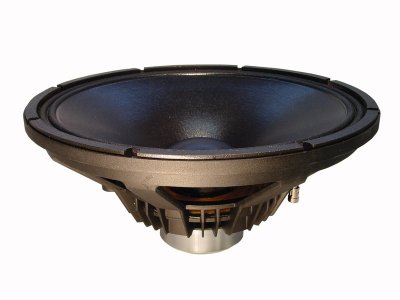

15N630

!
    Neodymium Magnet System
    Triple Aluminum demoduating Rings for ultra low Distortion
    Optimal for compact Subwoofers
    Application Subwoofer
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 600 W
    Sensitivity (1 W / 1 m): 98 dB
    Frequency response: 35 - 2500 Hz
    Voice Coil Diameter: 77 mm
    Overall Diameter: 388 mm
    Mounting Holes Diameter: 8 x (7 x 8) mm
    Bolt Circle Diameter: 371 mm
    Baffle cut-out Diameter: 358 mm
    verall depth: 182 mm
    Net Weight: 4.3 kg

15N820

!
    Neodymium Magnet System
    Double treated Cone for Water Protection
    Triple Aluminum demodulating Rings for ultra low Distortion
    Application 2- or 3-way Systems
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 900 W
    Sensitivity (1 W / 1 m): 98 dB
    Frequency response: 40 - 2500 Hz
    Voice Coil Diameter: 101.6 mm
    Overall Diameter: 388 mm
    Mounting Holes Diameter: 8 x (7 x 8) mm
    Bolt Circle Diameter: 371 mm
    Baffle cut-out Diameter: 358 mm
    Overall depth: 184 mm
    Net Weight: 5.7 kg

15N830 V2

!
    Neodymium Magnet System
    Double treated Cone for Water Protection
    Triple Aluminum demodulaing Rings for ultra low Distortion
    Application Subwoofer
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 1100 W
    Sensitivity (1 W / 1 m): 96 dB
    Frequency response: 35 - 1000 Hz
    Voice Coil Diameter: 101.6 mm
    Overall Diameter: 388 mm
    Mounting Holes Diameter: 8 x (7 x 8) mm
    Bolt Circle Diameter: 371 mm
    Baffle cut-out Diameter: 358 mm
    Overall depth: 194 mm
    Net Weight: 5.7 kg

15N840

!
    Neodymium Magnet System
    Double treated Cone for Water Protection
    Triple Aluminum demodulating Rings for ultra low Distortion
    Optimal for high Output Subwoofers
    Light Weight Carbon Fiber Diaphragm
    Application Subwoofer
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 1200 W
    Sensitivity (1 W / 1 m): 95 dB
    Frequency response: 22 - 300 Hz
    Voice Coil Diameter: 101.6 mm
    Overall Diameter: 388 mm
    Mounting Holes Diameter: 8 x (7 x 8) mm
    Bolt Circle Diameter: 371 mm
    Baffle cut-out Diameter: 358 mm
    Overall depth: 194 mm
    Net Weight: 6.8 kg

15N850

!
    Neodymium Magnet System
    Double treated Cone for Water Protection
    Triple Aluminum demodulating Rings for ultra low Distortion
    Application Subwoofer
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 1200 W
    Sensitivity (1 W / 1 m): 95 dB
    Frequency response: 20 - 200 Hz
    Voice Coil Diameter: 101.6 mm
    Overall Diameter: 388 mm
    Mounting Holes Diameter: 8 x (7 x 8) mm
    Bolt Circle Diameter: 371 mm
    Baffle cut-out Diameter: 357 mm
    Overall depth: 200 mm
    Net Weight: 8.55 kg

15S320

!
    Double treated Cone for Water Protection
    Triple Aluminum demodulating Rings for ultra low Distortion
    Application Compact 2- or 3-way
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 500 W
    Sensitivity (1 W / 1 m): 98 dB
    Frequency response: 40 - 2500 Hz
    Voice Coil Diameter: 77 mm
    Overall Diameter: 388 mm
    Mounting Holes Diameter: 8 x (7 x 8) mm
    Bolt Circle Diameter: 371 mm
    Baffle cut-out Diameter: 358 mm
    Overall depth: 178 mm
    Net Weight: 9 kg

15S330

!
    Triple Aluiminum demodulating Rings for ultra low Distortion
    Optimal for compact Subwoofers
    Application Subwoofer
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 600 W
    Sensitivity (1 W / 1 m): 98 dB
    Frequency response: 35 - 2500 Hz
    Voice Coil Diameter: 77 mm
    Overall Diameter: 388 mm
    Mounting Holes Diameter: 8 x (7 x 8) mm
    Bolt Circle Diameter: 371 mm
    Baffle cut-out Diameter: 358 mm
    Overall depth: 195 mm
    Net Weight: 9.6 kg

15S430 V2

!
    Double treated Cone for Water Protection
    Triple Aluminum demodulating Rings for ultra low Distortion
    Application Subwoofer
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 1200 W
    Sensitivity (1 W / 1 m): 97 dB
    Frequency response: 35 - 2500 Hz
    Voice Coil Diameter: 101.6 mm
    Overall Diameter: 388 mm
    Mounting Holes Diameter: 8 x (7 x 8) mm
    Bolt Circle Diameter: 371 mm
    Baffle cut-out Diameter: 358 mm
    Overall depth: 189 mm
    Net Weight: 10.7 kg

12"

!

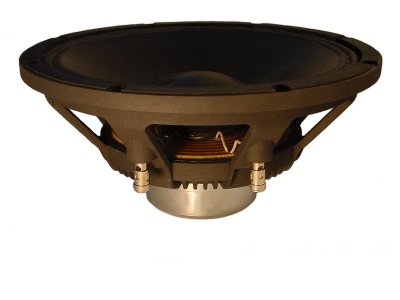

12N620

!
    Neodymium Magnet System
    Triple Aluminum demodulating Rings for ultra low Distortion
    Optimal for compact 2- or 3-way Systems
    Application Low-Middle
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 500 W
    Sensitivity (1 W / 1 m): 98 dB
    Frequency response: 45 - 2500 Hz
    Voice Coil Diameter: 77 (3") mm
    Overall Diameter: 318 mm
    Mounting Holes Diameter: 8 x (7 x 8) mm
    Bolt Circle Diameter: 300 mm
    Baffle cut-out Diameter: 284 mm
    Overall depth: 145 mm
    Net Weight: 3.5 kg

12N630

!
    Neodymium Magnet
    Triple Aluminum demodlating Rings for ultra low Distortion
    Optimal for compact Subwoofers
    Application Subwoofer
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 600 W
    Sensitivity (1 W / 1 m): 96 dB
    Frequency response: 25 - 300 Hz
    Voice Coil Diameter: 77 (3") mm
    Overall Diameter: 318 mm
    Mounting Holes Diameter: 8 x (7 x 8) mm
    Bolt Circle Diameter: 300 mm
    Baffle cut-out Diameter: 284 mm
    Overall depth: 159 mm
    Net Weight: 4.1 kg

12N810

!
    Neodymium Magnet System
    Triple Aluminum demodulating Rings for ultra low Distortion
    Optimal for compact 2-way and Horn-loaded Systems
    Application Low-Middle
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 600 W
    Sensitivity (1 W / 1 m): 100 dB
    Frequency response: 80 - 2000 Hz
    Voice Coil Diameter: 101.6 (4") mm
    Overall Diameter: 318 mm
    Mounting Holes Diameter: 8 x (7 x 8) mm
    Bolt Circle Diameter: 300 mm
    Baffle cut-out Diameter: 284 mm
    Overall depth: 155 mm
    Net Weight: 5.5 kg

12N820

!
    Neodymium Magnet System
    Triple Aluminum demodulating Rings for ultra low Distortion
    Optimal for compact 2- or 3-way Systems
    Application Low-Middle
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 800 W
    Sensitivity (1 W / 1 m): 98 dB
    Frequency response: 45 - 1700 Hz
    Voice Coil Diameter: 101.6 (4") mm
    Overall Diameter: 318 mm
    Mounting Holes Diameter: 8 x (7 x 8) mm
    Bolt Circle Diameter: 300 mm
    Baffle cut-out Diameter: 284 mm
    Overall depth: 155 mm
    Net Weight: 5.5 kg

12N802

!
    Neodymium Magnet System
    Triple Aluminum demodulating Rings for ultra low Distortion
    Optimal for compact 2- or 3-way Systems
    Application Low-Middle
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 1000 W
    Sensitivity (1 W / 1 m): 98 dB
    Frequency response: 45 - 1700 Hz
    Voice Coil Diameter: 101.6 (4") mm
    Overall Diameter: 318 mm
    Mounting Holes Diameter: 8 x (7 x 8) mm
    Bolt Circle Diameter: 300 mm
    Baffle cut-out Diameter: 284 mm
    Overall depth: 146 mm
    Net Weight: 4.7 kg

12N803

!
    Neodymium Magnet System
    Triple Aluminum demodulating Rings for ultra low Distortion
    Optimal for compact 2- or 3-way Systems
    Application Low-Middle
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 1000 W
    Sensitivity (1 W / 1 m): 97 dB
    Frequency response: 40 - 1700 Hz
    Voice Coil Diameter: 101.6 (4") mm
    Overall Diameter: 318 mm
    Mounting Holes Diameter: 8 x (7 x 8) mm
    Bolt Circle Diameter: 300 mm
    Baffle cut-out Diameter: 283 mm
    Overall depth: 147 mm
    Net Weight: 4.7 kg

12N804

!
    Neodymium Magnet
    Triple Aluminum demodulating Rings for ultra low Distortion
    Optimal for compact Subwoofers
    Application Subwoofer
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 1100 W
    Sensitivity (1 W / 1 m): 95 dB
    Frequency response: 40 - 1700 Hz
    Voice Coil Diameter: 101.6 (4") mm
    Overall Diameter: 318 mm
    Mounting Holes Diameter: 8 x (7 x 8) mm
    Bolt Circle Diameter: 300 mm
    Baffle cut-out Diameter: 283 mm
    Overall depth: 151 mm
    Net Weight: 5.1 kg

12S320

!
    Double treated Cone for Water Protection
    Triple Aluminum demodulating Rings for ultra low Distortion
    Application Compact 2- or 3-way
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 500 W
    Sensitivity (1 W / 1 m): 98 dB
    Frequency response: 45 - 2500 Hz
    Voice Coil Diameter: 77 (3") mm
    Overall Diameter: 318 mm
    Mounting Holes Diameter: 8 x (7 x 8) mm
    Bolt Circle Diameter: 300 mm
    Baffle cut-out Diameter: 284 mm
    Overall depth: 149 mm
    Net Weight: 8.1 kg

12S305

!
    Double Treated Cone for Water Protection
    Triple Aluminum demodulating Rings for ultra low Distortion
    Optimal for compact Subwoofers
    Light weight Carbon Fiber Diaphragm
    Application Subwoofer
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 800
    Sensitivity (1 W / 1 m): 98dB
    Frequency response: 35 - 2500Hz
    Voice Coil Diameter: 77 (3")mm
    Overall Diameter: 318 mm
    Mounting Holes Diameter: 8 x (7 x 8) mm
    Bolt Circle Diameter: 300 mm
    Baffle cut-out Diameter: 284 mm
    Overall depth: 153 mm
    Net Weight: 8 kg

12S330

!
    Double Treated Cone for Water Protection
    Triple Aluminum demodulating Rings for ultra low Distortion
    Optimal for compact Subwoofers
    Application Subwoofer
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 600 W
    Sensitivity (1 W / 1 m): 96 dB
    Frequency response: 25 - 300 Hz
    Voice Coil Diameter: 77 (3") mm
    Overall Diameter: 318 mm
    Mounting Holes Diameter: 8 x (7 x 8) mm
    Bolt Circle Diameter: 300 mm
    Baffle cut-out Diameter: 284 mm
    Overall depth: 171 mm
    Net Weight: 9.4 kg

8"

!

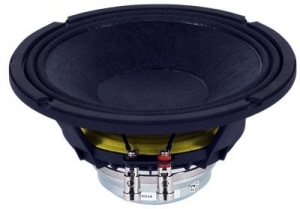

8N515 8/16ohm

!
    Double treated Cone for Water Protection
    Neodymium Magnet System
    Triple Aluminum demodulating Rings for ultra low Distortion
    Optimal for compact 2- or 3-way Systems
    Application Low-Middle
    Nominal Impendance: 8 of 16 Ohm
    Power handling AES noise: 200 W
    Sensitivity (1 W / 1 m): 96 dB
    Frequency response: 80 - 3000 Hz
    Voice Coil Diameter: 52 (2") mm
    Overall Diameter: 205 mm
    Mounting Holes Diameter: 4 x (6 x 6.5) mm
    Bolt Circle Diameter: 195-197 mm
    Baffle cut-out Diameter: 182 mm
    Overall depth: 102 mm
    Net Weight: 1.98 kg

8N519

!
    Neodymium Magnet System
    Triple Aluminum demodulating Rings for ultra low Distortion
    Optimal for compact 2- or 3-way Systems
    Light weight Carbon Fiber Diaphragm
    Application Low-Middle
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 250 W
    Sensitivity (1 W / 1 m): 94 dB
    Frequency response: 80 - 3000 Hz
    Voice Coil Diameter: 52 (2") mm
    Overall Diameter: 205 mm
    Mounting Holes Diameter: 4 x (6 x 6.5) mm
    Bolt Circle Diameter: 196 mm
    Baffle cut-out Diameter: 182 mm
    Overall depth: 102 mm
    Net Weight: 1.95 kg

8S215

!
    Double treated Cone for Water Protection
    Triple Aluminum demodulating Rings for ultra low Distortion
    Optimal for compact 2-way Systems
    Application Low-middle
    Nominal Impendance: 8 Ohm
    Power handling AES noise: 200 W
    Sensitivity (1 W / 1 m): 96 dB
    Frequency response: 80 - 3000 Hz
    Voice Coil Diameter: 51 (2") mm
    Overall Diameter: 205 mm
    Mounting Holes Diameter: 4 x (6 x 6.5) mm
    Bolt Circle Diameter: 196 mm
    Baffle cut-out Diameter: 182 mm
    Overall depth: 100 mm
    Net Weight: 3.25 kg

8S219

!
    Double treated Cone for Water Protection
    Triple Aluminum demodulating Rings for ultra low Distortion
    Optimal for compact 2-way Systems
    Light weight carbon fibre diaphragm
    Application Low-middle
    Nominal Impendance: Ohm 8
    Power handling AES noise: W 250
    Sensitivity (1 W / 1 m): dB 94
    Frequency response: Hz 80 - 3000
    Voice Coil Diameter: mm 52 (2")
    Mounting Holes Diameter: 4 x (6 x 6.5) mm
    Bolt Circle Diameter: 196 mm
    Baffle cut-out Diameter: 182 mm
    Overall depth: 100 mm
    Net Weight: 3.50kg

    6,5"

    !

    6N160 L/H 8/16ohm

    !
      Double treated Cone for Water Protection
      Neodymium Magnet System
      Twin Aluminum demodulating Rings for ultra low Distortion
      Optimal for compact 2- or 3-way Systems
      pplication Low-Middle
      Nominal Impendance: 8 of 16 Ohm
      Power handling AES noise: 130 W
      Sensitivity (1 W / 1 m): 93 dB
      Frequency response: 80 - 3500 Hz
      Voice Coil Diameter: 38 (1.5") mm
      Overall Diameter: 162 mm
      Mounting Holes Diameter: 4 x 5.3 mm
      Bolt Circle Diameter: 172 mm
      Baffle cut-out Diameter: 146 mm
      Overall depth: 80.5 mm
      Net Weight: 0.905 kg

    6S117 L/H 8/16ohm

    !
      Double treated Cone for Water Protection
      Triple Aluminum demodulating Rings for ultra low Distortion
      Optimal for compact 2- or 3-way Systems
      Application Low-middle
      Nominal Impendance: 8 Ohm
      Power handling AES noise: 130 W
      Sensitivity (1 W / 1 m): 93 dB
      Frequency response: 80 - 3500 Hz
      Voice Coil Diameter: 38 (1.5") mm
      Overall Diameter: 162 mm
      Mounting Holes Diameter: 4 x 5.3 mm
      Bolt Circle Diameter: 172 mm
      Baffle cut-out Diameter: 146 mm
      Overall depth: 81.5 mm
      Net Weight: 1.61 kg

    5"

    !

    5N155 L/H 8/16ohm

    !
      Double treated Cone for Water Protection
      Neodymium Magnet System
      Twin Aluminum demodulating Rings for ultra low Distortion
      Optimal for compact 2- or 3-way Systems
      pplication Low-Middle
      Nominal Impendance: 8 Ohm
      Power handling AES noise: 130 W
      Sensitivity (1 W / 1 m): 91 dB
      Frequency response: 80 - 4000 Hz
      Voice Coil Diameter: 38 (1.5") mm
      Overall Diameter: mm 135 x 135
      Mounting Holes Diameter: mm 4 x 5.3
      Bolt Circle Diameter: mm 139
      Baffle cut-out Diameter: mm 117
      Overall depth: mm 71
      Net Weight: kg 0.85

    5N160L

    !
      Double treated Cone for Water Protection
      Neodymium Magnet System
      Twin Aluminum demodulating Rings for ultra low Distortion
      Optimal for compact 2- or 3-way Systems
      Application Low-Middle
      Nominal Impendance: Ohm 8
      Power handling AES noise: W 130
      Sensitivity (1 W / 1 m): dB 91
      Frequency response: Hz 80 - 4000
      Voice Coil Diameter: mm 38 (1.5")
      Overall Diameter: 128 mm
      Mounting Holes Diameter: 4 x 5.3 mm
      Bolt Circle Diameter: 139 mm
      Baffle cut-out Diameter: 117 mm
      Overall depth: 73.5 mm
      Net Weight: 0.85 kg

    Coaxiaal

    !
