RCF
!

D-line

!

HDL 10-A 13040016

!
    Acoustical Specifications
    Frequency Response -3 dB: 65 Hz ÷ 20000 Hz
    Max SPL: 133 dB
    Horizontal coverage angle: 100° , Vertical coverage angle: 15°
    Compression Driver: 2", 2.5" v.c. , Woofer: 2 x 8", 2.0" v.c.

    Input/Output Section
    Input signal: bal/unbal, Input sensitivity: -2 dBu / +4 dBu
    Input connectors: XLR , Output connectors: XLR

    Processor Section
    Crossover frequencies: 800 Hz
    Protections: Thermal, RMS
    Limiter: Soft limiter
    Controls: Cluster, HF, High curving, Indoor

    Amplifier Specifications
    Total power: 700 W RMS
    High frequencies: 200 W RMS, Low frequencies: 500 W RMS
    Cooling: Convection
    Connections: Powercon in/out

    Physical Specifications
    Height: 294 / 11.5 mm/inch, Width: 569 / 22.40 mm/inch, Depth: 434 / 17.09 mm/inch
    Net Weight: 20.4 / 44.97 kg/lbs

HDL 20-A 13040007

!
    Acoustical Specifications
    Frequency Response -3 dB: 55 Hz ÷ 20000 Hz
    Max SPL: 135 dB
    Horizontal coverage angle: 100° , Vertical coverage angle: 15°
    Compression Driver: 2", 3.0" v.c., Woofer: 2 x 10", 2.5" v.c.

    Input/Output Section
    Input signal: bal/unbal, Input sensitivity: -2 dBu / +4 dBu
    Input connectors: XLR, Output connectors: XLR

    Processor Section
    Crossover frequencies: 800 Hz
    Protections: Thermal, RMS
    Limiter: Soft limiter
    Controls: Cluster, HF, High curving, Indoor

    Amplifier Specifications
    Total power: 700 W RMS
    High frequencies: 200 W RMS, Low frequencies: 500 W RMS
    Cooling: Convection
    Connections: Powercon in/out

    Physical Specifications
    Height: 294 / 11.5 mm/inch, Width: 705 / 27.7 mm/inch, Depth: 445 / 17.5 mm/inch
    Net Weight: 29 / 63.93 kg/lbs

HDL 15-AS 13040020

!
    Acoustical Specifications
    Frequency Response -3 dB: 40 Hz ÷ 140 Hz
    Max SPL: 133 dB
    Woofer: 15", 3.5" v.c.

    Input/Output Section
    Input signal: bal/unbal, Input sensitivity: -2 dBu / +4 dBu
    Input connectors: XLR, Output connectors: XLR

    Processor Section
    Protections: Thermal, RMS
    Limiter: Soft limiter
    Controls: Volume, EQ shape, Xover

    Amplifier Specifications
    Total power: 1000 W RMS
    Low frequencies: 1000 W RMS
    Cooling: Convection/forced
    Connections: Powercon in/out

    Physical Specifications
    Height: 458 / 18.03 mm/inch, Width: 555 / 21.85 mm/inch, Depth: 569 / 22.4 mm/inch
    Net Weight: 39 / 85.98 kg/lbs

HDL 18-AS 13040009

!
    Acoustical Specifications
    Frequency Response -3 dB: 30 Hz ÷ 140 Hz
    Max SPL: 135 dB
    Woofer: 18", 4.0" v.c.

    Input/Output Section
    Input signal: bal/unbal,Input sensitivity: -2 dBu / +4 dBu
    Input connectors: XLR, Output connectors: XLR

    Processor Section
    Protections: Thermal, RMS
    Limiter: Soft limiter
    Controls: Volume, EQ shape, Xover

    Amplifier Specifications
    Total power: 1000 W RMS
    Low frequencies: 1000 W RMS
    Cooling: Convection/forced
    Connections: Powercon in/out

    Physical Specifications
    Height: 511.5 / 20.1 mm/inch, Width: 700 / 27.5 mm/inch, Depth: 620 / 24.4 mm/inch
    Net Weight: 48.4 / 106.7 kg/lbs

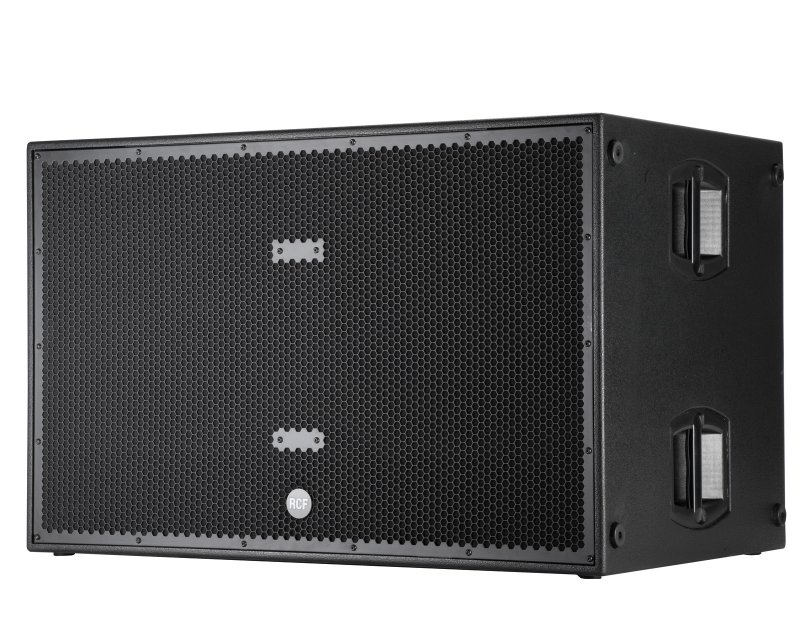

SUB 8006-AS 13000372

!
    Acoustical Specifications
    Frequency Response -3 dB: 30 Hz ÷ 120 Hz
    Max SPL: 141 dB
    Woofer: 2x 18", 4.0" v.c.

    Input/Output Section
    Input signal: bal/unbal,Input sensitivity: -2 dBu / +4 dBu
    Input connectors: XLR, Output connectors: XLR

    Processor Section
    Protections: Thermal, RMS
    Limiter: Soft limiter
    Controls: Volume, EQ shape, Xover

    Amplifier Specifications
    Total power: 2500 W RMS
    Low frequencies: 2500 W RMS
    Cooling: Convection/forced
    Connections: Powercon in/out

    Physical Specifications
    Height: 709 / 27.91 mm/inch, Width: 1109 / 43.66 mm/inch, Depth: 700 / 27.5 mm/inch
    Net Weight: 90 / 198.41 kg/lbs

ST serie

!

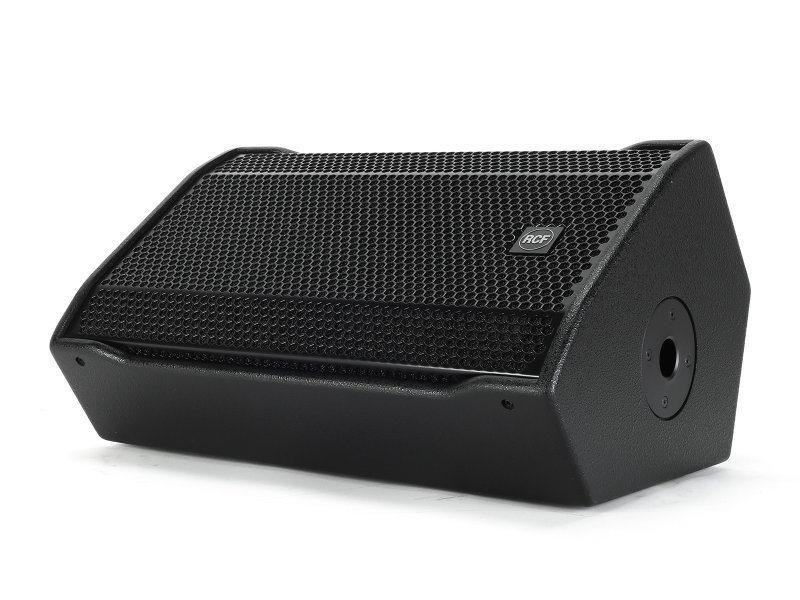

ST12 SMA 13000460

!
    Acoustical Specifications
    Frequency Response -3 dB: 45 Hz ÷ 20 KHz
    Max SPL: 129dB
    Horizontal coverage angle: 90° - Vertical coverage angle: 60°
    Compression Driver: 1", 1.4" voice coil
    Woofer: 12", 2.5" voice coil
    Input/Output Section
    Input signal: bal/unbal
    Input connectors: Jack-XLR male
    Output connectors: XLR female
    Processor Section
    Crossover frequencies: 1400 Hz
    Protections: RMS limiter, HF
    Limiter: Fast limiter
    Specifications
    Total power: 400 W RMS
    High frequencies: 100 W RMS
    Low frequencies: 300 W RMS
    Cabinet
    Cabinet Material: Baltic birch
    Handles: 1 on side
    Pole Mount/Cap: Yes
    Colour: Black
    Physical Specifications
    Height: 318/12.51 mm/inch, Width: 594/23.38 mm/inch, Depth: 400/15.74 mm/inch
    Net Weight: 18/39.68 kg/lbs

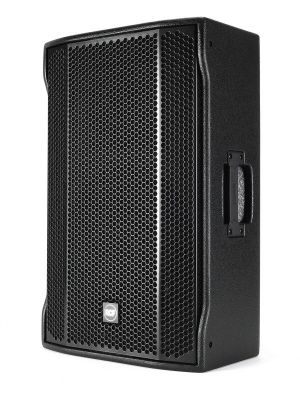

ST15 SMA 13000462

!
    Acoustical Specifications
    Frequency Response -3 dB: 45 Hz ÷ 20 KHz
    Max SPL: 131dB
    Horizontal coverage angle: 90° - Vertical coverage angle: 60°
    Compression Driver: 1", 1.4" voice coil
    Woofer: 15", 2.5" voice coil
    Input/Output Section
    Input signal: bal/unbal
    Input connectors: Jack-XLR male
    Output connectors: XLR female
    Processor Section
    Crossover frequencies: 1400 Hz
    Protections: RMS limiter, HF
    Limiter: Fast limiter
    Specifications
    Total power: 600 W RMS
    High frequencies: 200 W RMS
    Low frequencies: 400 W RMS
    Cabinet
    Cabinet Material: Baltic birch
    Handles: 1 on side
    Pole Mount/Cap: Yes
    Colour: Black
    Physical Specifications
    Height: 362/14.25 mm/inch, Width: 673/26.49 mm/inch, Depth: 473/18.62 mm/inch
    Net Weight: 20.7/45.63 kg/lbs

    Sub 905-AS II 13000434

    !
      Acoustical Specifications
      Frequency Response -3 dB: 40 Hz ÷ 120 Hz
      Max SPL: 133 dB
      Woofer: 15" neo, 3.0" voice coil
      Input/Output Section
      Input connectors: stereo XLR
      Output connectors: stereo XLR
      Input sensitivity: -2 dBu/+4 dBu
      Processor Section
      Crossover frequencies: selectable Hz
      Protections: thermal, rms
      Limiter: soft limiter
      Controls: Gain,EQ, phase, xover, delay, cardioid
      Amplifier Specifications
      Total power: 1100 W RMS
      Low frequencies: 1100 W RMS
      Cooling: convection
      Connections: powercon in/out
      Cabinet
      Cabinet Material: baltic birch plywood
      Handles: 2 side
      Grille: steel
      Colour: Black
      Physical Specifications
      Height: 600/23.62 mm/inch, 445/17.52 mm/inch,  Depth: 610/24.02 mm/inch
      Net Weight: 31/68.34 kg/lbs

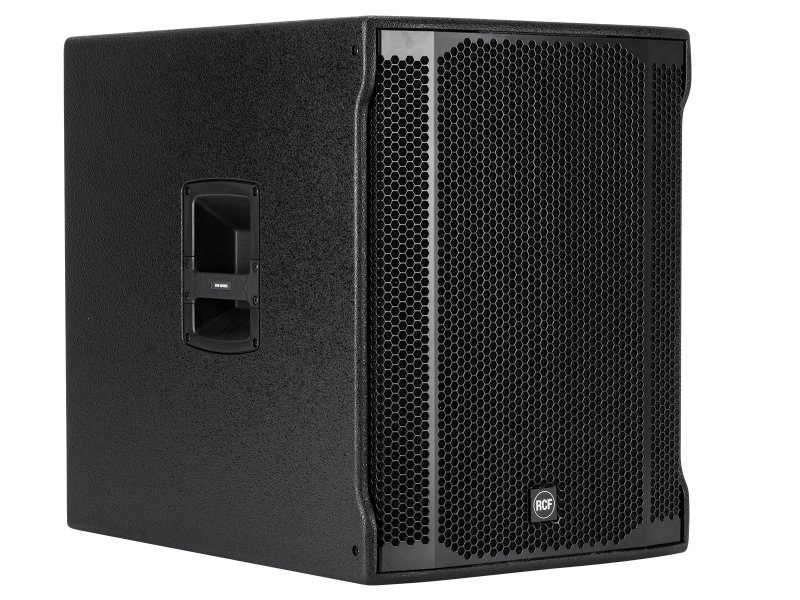

    Sub 8003-AS II 13000432

    !
      Acoustical Specifications
      Frequency Response -3 dB: 35 Hz ÷ 120 Hz
      Max SPL: 133 dB
      neodymium Woofer: 18" , 4.0" voice coil
      Input/Output Section
      Input connectors: stereo xlr
      Output connectors: stereo xlr
      Input sensitivity:-2 dBu / + 4 dBu
      Processor Section
      Crossover frequencies: Selectable Hz
      Protections: thermal, rms
      Limiter: dynamic limiter
      Controls: Gain,EQ, phase, xover, delay, cardioid
      Amplifier Specifications
      Total power: 1100 W RMS
      Low frequencies: 1100 W RMS
      Cooling: Convection
      Connections: Powercon in-out
      Cabinet
      Cabinet Material: Baltic Birch
      Handles: 2 on side
      Pole Mount/Cap: yes
      Grille: steel
      Colour:Black
      Physical Specifications
      Height: 694/27.32 mm/inch,  Width:523/20.59 mm/inch, Depth: 700/27.56 mm/inch
      Net Weight: 43.5/95.90 kg/lbs

    Accessoires D-line

    !

    Flybar HDL20-18 13360218

    !
      Suspending bar for HDL20-A line array system. Stack bar included.
      - FLY BAR PICKUP HDL 20 included.
      - 3 pins included
      - 1 stack bar included
      - To suspend up to 16 HDL 20-A modules

    Flybar HDL20-4 13360229

    !
      Suspending bar for HDL20-A line array system.
      - Stack bar included.
      - Pickup point included
      - Pole mount support included
      - 7 pins included
      - To suspend up to 4 HDL 20-A modules

    Linkbar HDL 20-18 13360225

    !
      2 x Link bar for HDL 20-A and HDL 18-AS

      AC 4-pins HDL20 front 13360219

      !
        4 quick front lock pins kit for HDL 20-A and HDL 18-AS array system.
        D Line approved original accessory
        Quick and safe lock for HDL 20-A and HDL 18-AS

        AC 4-pins HDL20 back 13360220

        !
          4 quick back lock pins kit for HDL 20-A and HDL 18-AS array system.
          D Line approved original accessory
          Quick and safe lock for HDL 20-A and HDL 18-AS

        AC 4-pins HDL20 frame 13360222

        !
          4 quick frame lock pins kit for HDL 20-A and HDL 18-AS array system.
          D Line approved original accessory
          Quick and safe lock for HDL 20-A and HDL 18-AS

        Flybar pickup HDL20 13360221

        !
          To be added to the fly bar accessory in case the pick up is made with 2 motors.
          - Two pins included

        AC raincover 2st 13360283

        !
          4 Rain cover for HDL 20-A and HDL 10-A

          Flybar HDL10-16 13360274

          !
            Suspending bar for HDL10-A line array system. Stack bar included.
            - FLY BAR PICKUP HDL 20 included.
            - 3 pins included
            - 1 stack bar included
            - To suspend up to 16 HDL 10-A modules

            Flybar HDL10-4 13360276

            !
              Suspending bar for HDL10-A line array system. Up to 4 pieces
              - Stack bar included.
              - Pickup point included
              - Pole mount support included
              - 7 pins included

              Kart + wheels 4x HDL 10A 13360275

              !
                D Line approved original accessory
                Strong construction
                Transport of up to 4 HDL 10-A modules
                Safe lock of the modules on the bottom
                Equipped with 4 high quality wheels with brakes
                Painted with black, scratch resistant, paint

              Kart + wheels 4x HDL 20A 13360223

              !
                D Line approved original accessory
                Strong construction
                Transport of up to 4 HDL 20-A modules
                Safe lock of the modules on the bottom
                Equipped with 4 high quality wheels with brakes
                Painted with black, scratch resistant, paint

              AC connection kit HDL on sub 8006 13360231

              !

                Accessory to lock FLY BAR HDL 20-18 to the SUB 8006-AS.
                Accessory to lock FLY BAR HDL 10 to the SUB 8004-AS.
                M20 fixing point.

                Two pieces, 4 pins.
