Master Audio
!

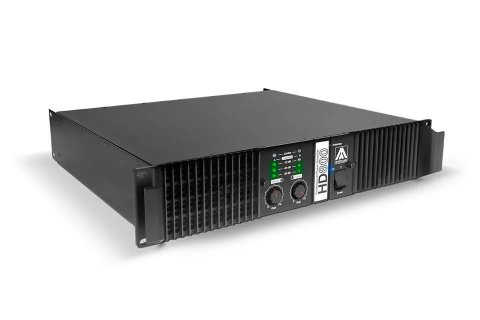

HD800 2*400w 4ohm

!
  • Voltage gain: 32dB
  • Input sensivity: 1V
  • Input Impedance: 20 kΩ
  • Output Power
  • Stereo 8 Ω: 230W + 230W
  • Stereo 4 Ω: 400W + 400W
  • Stereo 2Ω: 550W + 550W(2)
  • Bridge 8 Ω: 800W
  • Bridge 4 Ω: 1100W(2)
  • Average Current draw: 3 A @ 230 V AV
  • Frequency Response 20 Hz – 20 kHz (0/-1 dB)
  • Damping Factor (1 kHz @ 8 Ω) 280
  • Crosstalk: 60 dB
  • THD:  < 0.05%
  • S/N Ratio (A-weighted): 102 dB
  • Mains: 85~240 V AC- 50/60 Hz
  • Dimensions (HxWxD): 88 x 482 x 420 mm (2U Rack 19”)
  • Weight: 14 kg

HD1200 2*600w 4ohm

!
  • Voltage gain: 32dB
  • Input sensivity: 1.25V
  • Input Impedance: 20 kΩ
  • Slew rate: +/-12 V/μs
  • Output Power
  • Stereo 8 Ω: 350W + 350W
  • Stereo 4 Ω: 600W + 600W
  • Stereo 2Ω: 850W + 850W(2)
  • Bridge 8 Ω: 1200W
  • Bridge 4 Ω: 1700W(2)
  • Average Current draw: 4 A @ 230 V AV
  • Frequency Response 20 Hz – 20 kHz (0/-1 dB)
  • Damping Factor (1 kHz @ 8 Ω) 300
  • Crosstalk: 60 dB
  • THD:  < 0.05%
  • S/N Ratio (A-weighted): 104 dB
  • Mains: 85~240 V AC- 50/60 Hz
  • Dimensions (HxWxD): 88 x 482 x 420 mm (2U Rack 19”)
  • Weight: 15 kg

HD2000 2*1000w 4ohm

!
  • Voltage gain: 32dB
  • Input sensivity: 1.74V
  • Input Impedance: 20 kΩ
  • Slew rate: +/-12 V/μs
  • Output Power
  • Stereo 8 Ω: 600W + 600W
  • Stereo 4 Ω: 1000W + 1000W
  • Stereo 2Ω: 1500W + 1500W(2)
  • Bridge 8 Ω: 2000W
  • Bridge 4 Ω: 3000W(2)
  • Average Current draw: 5 A @ 230 V AV
  • Frequency Response 20 Hz – 20 kHz (0/-1 dB)
  • Damping Factor (1 kHz @ 8 Ω) 350
  • Crosstalk: 65 dB
  • THD:  < 0.05%
  • S/N Ratio (A-weighted): 105 dB
  • Mains: 85~240 V AC- 50/60 Hz
  • Dimensions (HxWxD): 88 x 482 x 440 mm (2U Rack 19”)
  • Weight: 18 kg

HD3200 2*1750w 4ohm

!
  • Voltage gain: 32dB
  • Input sensivity: 2V
  • Input Impedance: 20 kΩ
  • Slew rate: +/-12 V/μs
  • Output Power
  • Stereo 8 Ω: 1000W + 1000W
  • Stereo 4 Ω: 1750W + 1750W
  • Stereo 2Ω: 2500W + 2500W(2)
  • Bridge 8 Ω: 3500W
  • Bridge 4 Ω: 5000W(2)
  • Average Current draw: 6 A @ 230 V AV
  • Frequency Response 20 Hz – 20 kHz (0/-1 dB)
  • Damping Factor (1 kHz @ 8 Ω) 400
  • Crosstalk: 65 dB
  • THD:  < 0.05%
  • S/N Ratio (A-weighted): 108 dB
  • Mains: 85~240 V AC- 50/60 Hz
  • Dimensions (HxWxD): 88 x 482 x 440 mm (2U Rack 19”)
  • Weight: 21 kg

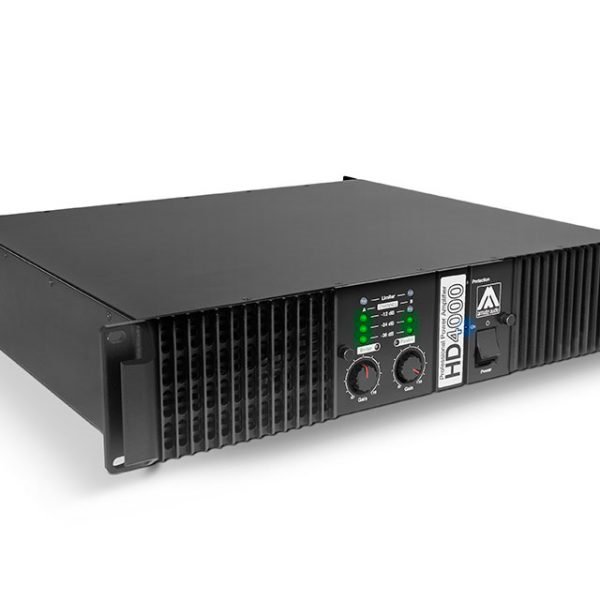

HD4000 2*1200w 4ohm

!
  • Voltage gain: 32dB
  • Input sensivity: 1.88V
  • Input Impedance: 20 kΩ
  • Slew rate: +/-12 V/μs
  • Output Power
  • Stereo 8 Ω: 650W + 650W
  • Stereo 4 Ω: 1200W + 1200W
  • Stereo 2Ω: 2100W + 2100W(2)
  • Bridge 8 Ω: 2400W
  • Bridge 4 Ω: 4200W(2)
  • Average Current draw: 7 A @ 230 V AV
  • Frequency Response 20 Hz – 20 kHz (0/-1 dB)
  • Damping Factor (1 kHz @ 8 Ω) 350
  • Crosstalk: 65 dB
  • THD:  < 0.05%
  • S/N Ratio (A-weighted): 108 dB
  • Mains: 85~240 V AC- 50/60 Hz
  • Dimensions (HxWxD): 88 x 482 x 440 mm (2U Rack 19”)
  • Weight: 21 kg

Xamp3K 2400w + 600w 4ohm

!
  • Voltage gain: 32dB
  • Input Impedance: 20 kΩ
  • Slew rate:+/-12 V/μs
  • Output Power
  • LF 1200w @ 8 Ω / 2400w @ 4 Ω
  • HF 300 W @ 8 Ω / 600 W @ 4 Ω
  • Average Current draw: 5 A @ 230 V AV
  • Frequency Response 20 Hz – 20 kHz (0/-1 dB)
  • Damping Factor (1 kHz @ 8 Ω) 400
  • Crosstalk: 65 dB
  • THD:  < 0.05%
  • S/N Ratio (A-weighted): 108 dB
  • Mains: 85~240 V AC- 50/60 Hz
  • Dimensions (HxWxD): 88 x 482 x 440 mm (2U Rack 19”)
  • Weight: 20 kg

TPD 1000w x 2*500w 4ohm DSP

!
  • Sensitivity: 1.5 V
  • Input Impedance: 20 kΩ
  • Output Power
  • L & R: 250 + 250 W @ 8 Ω / 500 + 500 W @ 4 Ω
  • Subwoofer: 900 W @ 8 Ω / 1000 W @ 4 Ω
  • Average Current draw: 3 A @ 230 V AV
  • Frequency Response (adjustable DSP)
  • L & R: 70 Hz – 20 kHz (-3 dB)
  • Subwoofer: 30 Hz – 200 Hz (-3 dB)
  • Damping Factor (1 kHz @ 8 Ω) L & R > 560, Subwoofer > 320
  • Crosstalk: 65 dB
  • THD:  < 0.05%
  • S/N Ratio (A-weighted): 104 dB
  • Mains: 85~240 V AC- 50/60 Hz
  • Dimensions (HxWxD): 88 x 482 x 370 mm (2U Rack 19”)
  • Weight: 8 kg
