PSSO
!

Amp-Set for Line-Array S 11041065

!
Complete amp set
  • The set includes;
    1x PSSO HP-1400 amplifier, 2x700W/4Ohm,
    2x PSSO HP-2400 amplifier, 2x1200W/4Ohm,
    1x PSSO HP-3200 amplifier, 2x1600W/4Ohm
    1x PSSO DXO-48 Digital system controller
  • High-power amplifier
  • Class H technology
  • Power supply with softstart
  • High impulse stability
  • Stable metal housing
  • Plain design with aluminum front panel
  • Rack installation with 2 units
  • Complete protection set against overheat, overload, short-circuit, DC, softstart
  • 3 operating modes can be selected (stereo, parallel or bridged)
  • Electronically balanced inputs via XLR/Jack mounting sockets
  • Outputs via lockable Speaker-plugs
  • Operation mode visible via LED display for Signal, Protect and Clip
  • Calibrated input controls for exact level control, power switch
  • Ground Lift switch against humming
  • Bridged switch for bridging
  • 30 Hz Low Cut on the rear panel
  • Combines superior sound quality with highest reliabilty at significant lower weight
  • Stable permanent power for all models
  • Reliable power amp for a wide range of applications
  • Digital system controller
  • 4 inputs and 8 outputs with flexible signal routing
  • 32-bit floating point DSP
  • 96 kHz sampling rate
  • 24-bit A-D/D-A converter
  • 6 fully parametric equalizers per input and output
  • Slopes up to 48 dB/octave
  • Backlit 4 lines x 20 character display
  • 30 user programs can be memorized
  • Up to 500 ms signal delay for the inputs and outputs adjustable
  • Delay displayed in milliseconds, meters, feet and frame/second
  • Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
  • Lock-function for protecting the program settings
  • Phase Invert per output
  • Digital adjustment of the input gain +/- 15 dB

Amp-Set for Line-Array M 11041066

!
Complete amp set
  • The set includes;
    2x PSSO HP-1400 amplifier, 2x700W/4Ohm,
    3x PSSO HP-2400 amplifier, 2x1200W/4Ohm,
    1x PSSO DXO-48 Digital system controller
  • High-power amplifier
  • Class H technology
  • Power supply with softstart
  • High impulse stability
  • Stable metal housing
  • Plain design with aluminum front panel
  • Rack installation with 2 units
  • Complete protection set against overheat, overload, short-circuit, DC, softstart
  • 3 operating modes can be selected (stereo, parallel or bridged)
  • Electronically balanced inputs via XLR/Jack mounting sockets
  • Outputs via lockable Speaker-plugs
  • Operation mode visible via LED display for Signal, Protect and Clip
  • Calibrated input controls for exact level control, power switch
  • Ground Lift switch against humming
  • Bridged switch for bridging
  • 30 Hz Low Cut on the rear panel
  • Combines superior sound quality with highest reliabilty at significant lower weight
  • Stable permanent power for all models
  • Reliable power amp for a wide range of applications
  • Digital system controller
  • 4 inputs and 8 outputs with flexible signal routing
  • 32-bit floating point DSP
  • 96 kHz sampling rate
  • 24-bit A-D/D-A converter
  • 6 fully parametric equalizers per input and output
  • Slopes up to 48 dB/octave
  • Backlit 4 lines x 20 character display
  • 30 user programs can be memorized
  • Up to 500 ms signal delay for the inputs and outputs adjustable
  • Delay displayed in milliseconds, meters, feet and frame/second
  • Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
  • Lock-function for protecting the program settings
  • Phase Invert per output
  • Digital adjustment of the input gain +/- 15 dB

Amp-Set for Line-Array L 11041067

!
Complete amp set
  • The set includes;
    2x PSSO HP-1400 amplifier, 2x700W/4Ohm,
    3x PSSO HP-2400 amplifier, 2x1200W/4Ohm,
    1x PSSO HP-3200 amplifier, 2x1600W/4Ohm
    1x PSSO DXO-48 Digital system controller
  • High-power amplifier
  • Class H technology
  • Power supply with softstart
  • High impulse stability
  • Stable metal housing
  • Plain design with aluminum front panel
  • Rack installation with 2 units
  • Complete protection set against overheat, overload, short-circuit, DC, softstart
  • 3 operating modes can be selected (stereo, parallel or bridged)
  • Electronically balanced inputs via XLR/Jack mounting sockets
  • Outputs via lockable Speaker-plugs
  • Operation mode visible via LED display for Signal, Protect and Clip
  • Calibrated input controls for exact level control, power switch
  • Ground Lift switch against humming
  • Bridged switch for bridging
  • 30 Hz Low Cut on the rear panel
  • Combines superior sound quality with highest reliabilty at significant lower weight
  • Stable permanent power for all models
  • Reliable power amp for a wide range of applications
  • Digital system controller
  • 4 inputs and 8 outputs with flexible signal routing
  • 32-bit floating point DSP
  • 96 kHz sampling rate
  • 24-bit A-D/D-A converter
  • 6 fully parametric equalizers per input and output
  • Slopes up to 48 dB/octave
  • Backlit 4 lines x 20 character display
  • 30 user programs can be memorized
  • Up to 500 ms signal delay for the inputs and outputs adjustable
  • Delay displayed in milliseconds, meters, feet and frame/second
  • Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
  • Lock-function for protecting the program settings
  • Phase Invert per output
  • Digital adjustment of the input gain +/- 15 dB

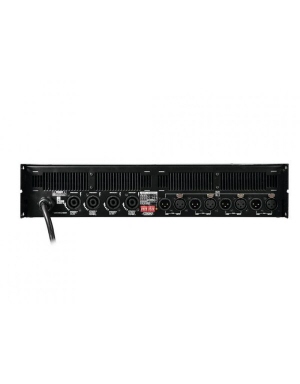

QCA-10000 4-channel 4x 2100w 4ohm 2HE 10451697

!
  • Power supply: 230 V AC, 50 Hz ~
  • Power consumption: 1150 W (1/8 power)
  • Power output (RMS):
    2 ohm 4 x 2500 W
    4 ohm 4 x 2100 W
    8 ohm 4 x 1300 W
    4 ohm bridged 2 x 5000 W
    8 ohm bridged 2 x 4200 W
  • Frequency response: 20-20000 Hz
  • Signal-to-Noise ratio: >80 dB
  • Total harmonic distortion: <0.05 %
  • Damping factor: >800
  • Slew rate: >10 V/usec
  • Crosstalk: >65 dB
  • Input sensitivity: 0.775 V/1.0 V/1.4 V/38 dB/32 dB/26 dB, switchable
  • Voltage gain: 40.3 dB (0.775 V), 38 dB (1.0 V), 35.1 dB (1.4 V)
  •  Input impedance: 20 kohms (balanced), 10 kohms (unbalanced)
  • Input connectors: 4 x XLR
  • Output connectors: 4 x Speaker, 4 x XLR feed-through output
  • Protection: Overheat, overload, short-circuit, over-current, DC voltage, softstart, VHF signals
  • Cooling: 2 temperature-controlled fans, front-to-rear
  •  Controls: Power switch, input attenuators, mode switch stereo/parallel/bridged, input sensitivity
  • LED indicators: Protect, clip, signal (per channel)
  • Dimensions: 483 x 445 x 89 mm
  • Rack installation with 2 U

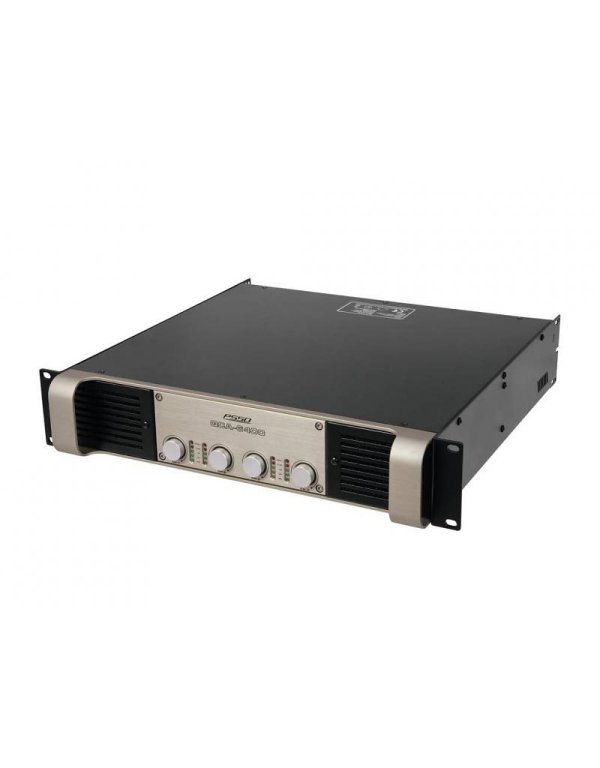

QCA-6400 4-channel 4*1400w 4ohm 2HE 10451696

!
Als boven maar nu met;
  • Power consumption: 820 W (1/8 power)
  • Power output (RMS):
    2 ohm 4 x 1600 W
    4 ohm 4 x 1400 W
    8 ohm 4 x 800 W
    4 ohm bridged 2 x 3200 W
    8 ohm bridged 2 x 2800 W

HSP-1000 2*500w 4ohm 2HE 10451682

!
  • Power supply: 230 V AC, 50 Hz ~
  • Power consumption: 1500 W (1/8 power)
  • Power output (RMS):
    Stereo 4 ohm 2 x 1050 W
    Stereo 8 ohm 2 x 650 W
    8 ohm bridged 1 x 2200 W
  • Frequency response: 20-20000 Hz
  • Signal-to-Noise ratio: >90 dB
  • Total harmonic distortion: <0.1 %
  • Damping factor: >300
  • Voltage gain: 38 dB
  • Slew rate: >20 V/usec
  • Crosstalk: >70 dB
  • Input sensitivity: 32 dB/1.0 V/0.775 V, swtichable
  • Input impedance: 20 kohms (balanced), 10 kohms (unbalanced)
  • Input connectors: 2 x XLR
  • Output connectors: 2 x Speaker, screw terminals, 2 x XLR feed-through output
  • Protection: Overheat, overload, short-circuit, over-current, DC voltage, softstart, VHF signals
  • Cooling: 2 temperature-controlled fans, front-to-rear
  • Controls: Power switch, input attenuators, mode switch stereo/parallel/bridged, input sensitivity
  • LED indicators: parallel, bridge (globally), protect, clip, signal (per channel)
  • Dimensions: 483 x 400 x 89 mm Rack installation with 2 U

HSP-2800 2*1400w 4ohm 2HE 10451690

!
Als boven maar nu met;
  • Power consumption: 1500 W (1/8 power)
  • Power output (RMS):
    Stereo 4 ohm 2 x 1400 W
    Stereo 8 ohm 2 x 850 W
    8 ohm bridged 1 x 3000 W
  • Dimensions: 483 x 505 x 89 mm

HSP-4000 2*2000w 4ohm 2HE 10451694

!
Als boven maar nu met;
  • Power consumption: 2000 W (1/8 power)
  • Power output (RMS):
    Stereo 4 ohm 2 x 2000 W
    Stereo 8 ohm 2 x 1200 W
    8 ohm bridged 1 x 4100 W
  • Dimensions: 483 x 505 x 89 mm

HP-1400 2*700w 4ohm 2HE 10451650

!
  • Power supply: 230 V AC, 50 Hz ~
  • Power consumption: 740 W (1/8 power)
  • Power output (RMS):
    Stereo 4 ohms 2 x 700 W
    Stereo 8 ohms 2 x 400 W
    8 ohms bridged 1 x 1400 W
  • Frequency response: 20-20000 Hz
  • Signal-to-noise ratio: >88 dB
  • Total harmonic distortion: 0.1 %
  • Damping factor: 450
  • Voltage gain: 34.3 dB
  • Slew rate: 30 V/usec.
  • Crosstalk: 72 dB
  • Input sensitivity: 0.77/1/1.4 V
  • Input impedance: 10/20 kohms (bal./unbal.)
  • Input connectors: 2 x XLR mounting socket
  • Output connectors: 2 x Speaker (stereo), 1 x binding post (bridge)
  • Protection: Overheat, overload, short-circuit, DC, softstart
  • Cooling: 2 fans
  • Controls: Power switch, input attenuators, mode switch (stereo/parallel/bridged), ground lift
  • Indicators: Signal, Clip, Protect, Power
  • Dimensions: 456 x 482 x 88 mm Rack installation with 2 U

HP-2400 2*1200w 4ohm 2HE 10451651

!
Als boven maar nu met;
  • Power consumption:1300 W (1/8 power)
  • Power output (RMS):
    Stereo 4 ohm 2 x 1200 W
    Stereo 8 ohm 2 x 690 W
    8 ohm bridged 1 x 2400 W

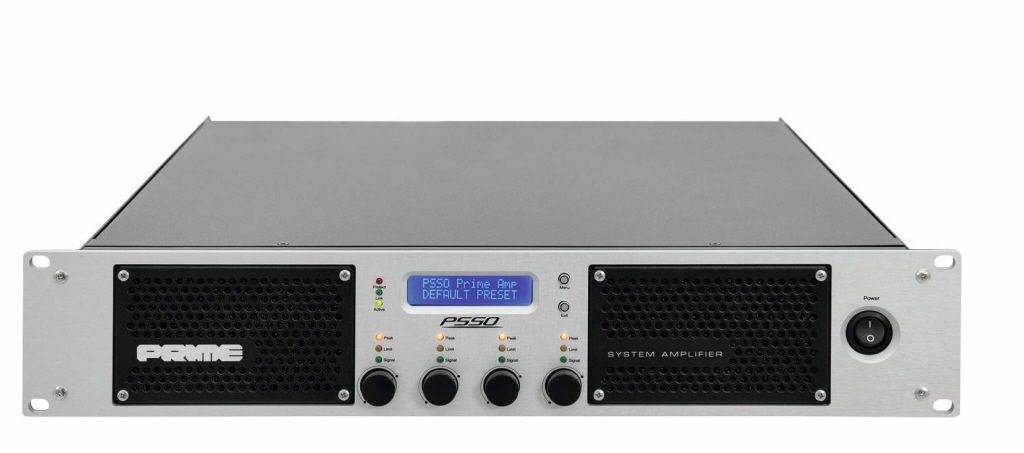

PRIME System amplifier DSP 10451701

!
Als boven maar nu met:
Stereo 4 ohms 2 x 650 W
Stereo 8 ohms 2 x 450 W
8 ohms bridged 1 x 1300 W
