PSSO
!

K Serie

!

K-315HD 3-way top 1000w/98dB 11041112

!
    Rated power: 700 W RMS LF
    300 W RMS MHF
    Components: 38 cm woofer (15"), 16.5 cm driver (6.5"), 3.6 cm horn tweeter (1.4")
    Connections: 2 Speaker sockets
    Sensitivity (1 W/m): 98 dB LF
    108 dB MHF
    Max. SPL: 137 dB (1 m)
    Impedance: 8 ohms LF
    8 ohms MHF
    Frequency range: 45 Hz - 20 kHz
    Crossover frequency: 500 Hz and 2.5 kHz
    Dimensions (HxWxD): 800 x 448 x 441 mm
    Weight: 35 kg

K-215X 2-way top 600w/98dB 11041110

!
    Rated power: 600 W RMS
    Components: 38 cm woofer (15"), 2.5 cm horn (1.4")
    Connections: 2 Speaker sockets
    Sensitivity (1 W/m): 98 dB
    Max. SPL: 132 dB (1 m)
    Impedance: 8 ohms
    Frequency range: 44 Hz - 19 kHz
    Crossover frequency: 1.5 kHz
    Dispersion angle (HxV): 80° x 50°
    Dimensions (HxWxD): 445 x 710 x 414 mm
    Weight: 26 kg

K-212 2-way top 300w/97dB 11041104

!
    Rated power: 300 W RMS
    Components: 30 cm woofer (12"), 2.5 cm horn (1")
    Connections: 2 Speaker sockets
    Sensitivity (1 W/m): 97 dB
    Max. SPL: 128 dB (1 m)
    Impedance: 8 ohms
    Frequency range: 55 Hz - 19 kHz
    Crossover frequency: 1.9 kHz
    Dispersion angle (HxV): 90° x 60°
    Dimensions (HxWxD): 347 x 660 x 352 mm
    Weight: 19 kg

K-215DPX 2-way top 1000w/101dB 11041096

!
    Rated power: 600 W RMS
    Components: 38 cm woofer (15"), 2.5 cm horn (1.4")
    Connections: 2 Speaker sockets
    Sensitivity (1 W/m): 98 dB
    Max. SPL: 132 dB (1 m)
    Impedance: 8 ohms
    Frequency range: 44 Hz - 19 kHz
    Crossover frequency: 1.5 kHz
    Dispersion angle (HxV): 80° x 50°
    Dimensions (HxWxD): 445 x 710 x 414 mm
    Weight: 26 kg

K-212CM 2-way coaxial wedge 400w/98dB 11041117

!
    Rated power: 400 W RMS
    Components: 30 cm woofer (12"), 3.6 cm horn (1.4")
    Connections: 2 x Speakon
    Sensitivity (1 W/m): 98 dB
    Max. SPL: 130 dB (1 m)
    Impedance: 8 ohms
    Frequency range: 64 Hz - 19 kHz
    Crossover frequency: 1.5 kHz
    Dispersion angle (HxV): 70 x 70
    Dimensions (HxWxD): 297 x 504 x 437 mm
    Weight: 19 kg

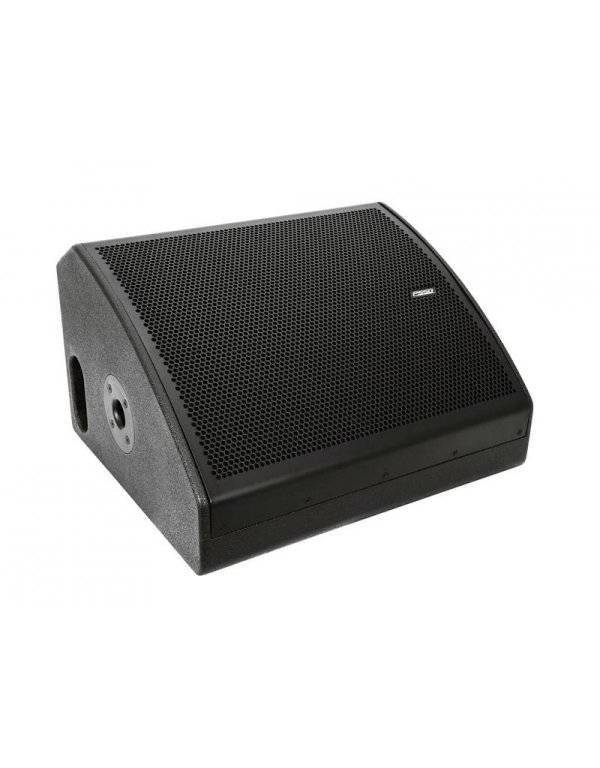

K-215CM 2-way coaxial wedge 400w/99dB 11041119

!
    Rated power: 400 W RMS
    Components: 38 cm woofer (15"), 2.5 cm horn (1")
    Connections: 2 x Speakon
    Sensitivity (1 W/m): 99 dB
    Max. SPL: 131 dB (1 m)
    Impedance: 8 ohms
    Frequency range: 58 Hz - 19 kHz
    Crossover frequency: 1.5 kHz
    Dispersion angle (HxV): 70 x 70
    Dimensions (HxWxD): 352 x 580 x 502 mm
    Weight: 25 kg

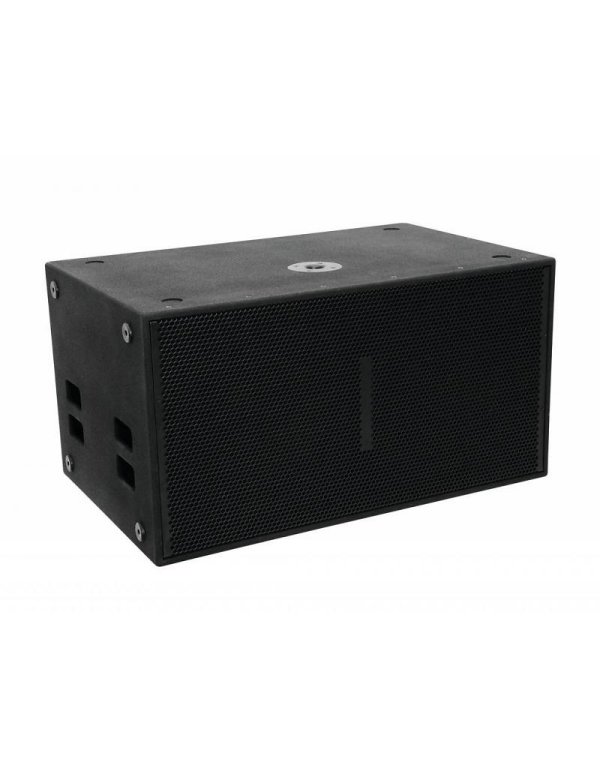

K-152 Subwoofer 1000w/100dB 11041132

!
    Rated power: 1000 W RMS
    Components: 2 x 38 cm woofer (15")
    Connections: 2 Speaker sockets
    Sensitivity (1 W/m): 100 dB
    Max. SPL: 136 dB (1 m)
    Impedance: 4 ohms
    Frequency range: 42 - 2200 Hz
    Dimensions (HxWxD): 1000 x 476 x 590 mm
    Weight: 48 kg

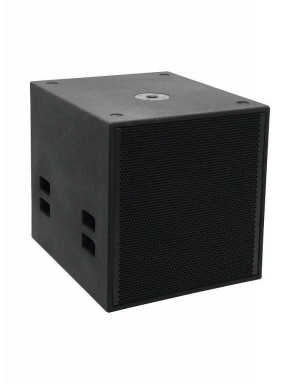

K-181 Subwoofer 1000w/98dB 11041136

!
    Rated power: 1000 W RMS
    Components: 45 cm woofer (18")
    Connections: 2 Speaker sockets
    Sensitivity (1 W/m): 98 dB
    Max. SPL: 134 dB (1 m)
    Impedance: 8 ohms
    Frequency range: 35 - 1300 Hz
    Dimensions (HxWxD): 561 x 580 x 690 mm
    Weight: 45 kg

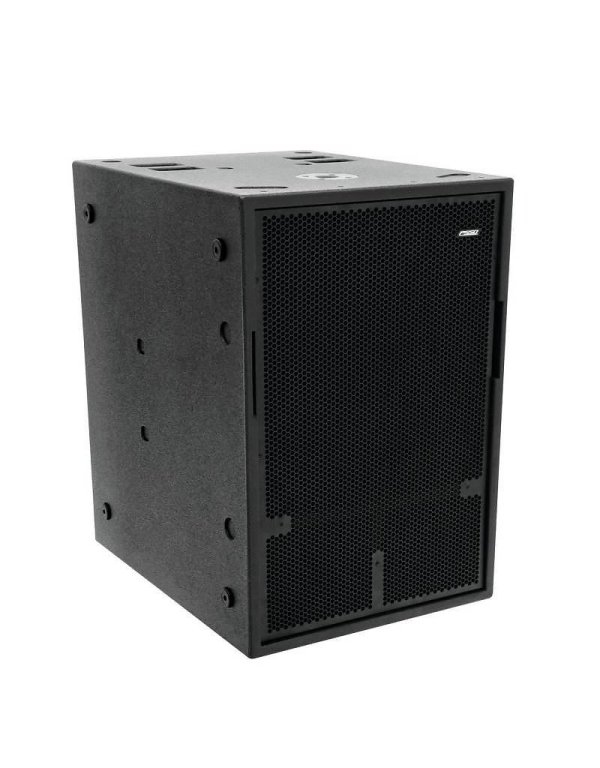

K-211 Subwoofer 1600w/103dB 11041142

!
    Rated power: 1600 W RMS
    Components: 54 cm woofer (21")
    Connections: 2 x Speakon
    Sensitivity (1 W/m): 103 dB
    Max. SPL: 141 dB (1 m)
    Impedance: 4 ohms
    Frequency range: 33 - 800 Hz
    Dimensions (HxWxD): 750 x 580 x 860 mm
    Weight: 70 kg

SUB-2180 2*18" 1600w/104dB 11043560

!
    Rated power: 1600 W RMS
    Program power: 3200 W
    Components: 2 x 45 cm woofer (2 x 18")
    Connections: 2 Speaker sockets
    Sensitivity (1 W/m): 104 dB
    Max. SPL (1 m): 138 dB
    Impedance: 4 ohms
    Frequency range: 33 - 250 Hz
    Dimensions (H x W x D): 106 x 79 x 61 cm
    Weight: 95 kg

Prime Serie

!

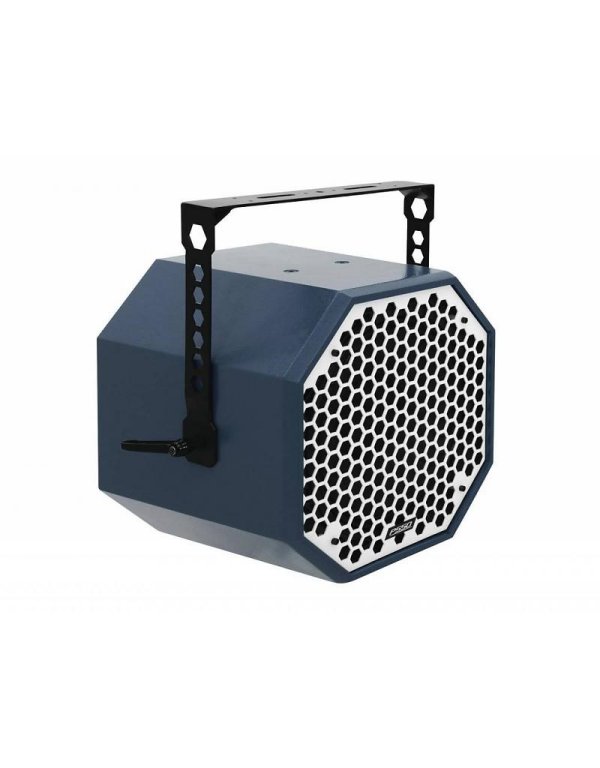

PRIME-12CX Coaxial speaker, 400w/100dB 11041175

!
    Rated power: 400 W RMS
    Components: 30 cm woofer (12"), 3.6 cm horn (1.4")
    Connections: 2 x Speakon
    Sensitivity (1 W/m): 100 dB
    Max. SPL: 132 dB (1 m)
    Impedance: 8 ohms
    Frequency range: 59 Hz - 21 kHz
    Crossover frequency: 1.4 kHz
    Dispersion angle (HxV): 70 x 70
    Dimensions (HxWxD): 380 x 380 x 380 mm
    Weight: 15 kg

PRIME-315 Club speaker system 1900w/102dB 11041172

!
    Rated power: 1800 W RMS LF, 300 W RMS HF
    Components: 2 x 38 cm bass/mid speakers (15"), 16.5 cm horn tweeter (6.5"), 2 x 3.6 cm horn tweeter (1.4"), 72 mm voice coil
    Connections: 2 x Speakon, 4-pin
    Sensitivity (1 W/m): 102 dB
    Max. SPL: 140 dB (1 m)
    Impedance: 4 ohms LF 8 ohms HF
    Frequency range: 46 Hz - 19 kHz
    Crossover frequency: 650 Hz, 2.2 kHz
    Dispersion angle (HxV): 80° x 50°
    Dimensions (HxWxD): 815 x 838 x 584 mm
    Weight: 75 kg

PRIME-212 Club speaker system 1100w/101dB 11041170

!
    Rated power: 1000 W RMS LF, 100 W RMS HF
    Components: 2 x 30 cm woofer (12"), 3.6 cm horn tweeter (1.5"), 72 mm voice coil
    Connections: 2 x Speakon, 4-pin
    Sensitivity (1 W/m): 101 dB
    Max. SPL: 137 dB (1 m)
    Impedance: 4 ohms LF 8 ohms HF
    Frequency range: 55 Hz - 19 kHz
    Crossover frequency: 1.2 kHz
    Dispersion angle (HxV): 50° to 100° x 10° to -30°
    Dimensions (HxWxD): 348 x 756 x 494 mm
    Weight: 34 kg

PRIME-208 Club speaker system 400w/98dB 11041168

!
    Rated power: 400 W RMS
    Components: 2 x 20 cm woofer (8"), 2.5 cm horn tweeter (1"), 51 mm voice coil
    Connections: 2 x Speakon
    Sensitivity (1 W/m): 98 dB
    Max. SPL: 130 dB (1 m)
    Impedance: 4 ohms
    Frequency range: 56 Hz - 19 kHz
    Crossover frequency: 1.5 kHz
    Dispersion angle (HxV): 50° to 100° x 10° to -30°
    Dimensions (HxWxD): 400 x 530 x 420 mm
    Weight: 22 kg

PRIME-152 Subwoofer 1400w/99dB 11041177

!
    Rated power: 1400 W RMS
    Components: 2 x 38 cm woofer (2 x 15"), 100 mm voice coil
    Connections: 2 x Speakon
    Sensitivity (1 W/m): 99 dB
    Max. SPL: 136 dB (1 m)
    Impedance: 4 ohms
    Frequency range: 39 - 1600 Hz
    Dimensions (HxWxD): 505 x 950 x 505 mm
    Weight: 63 kg

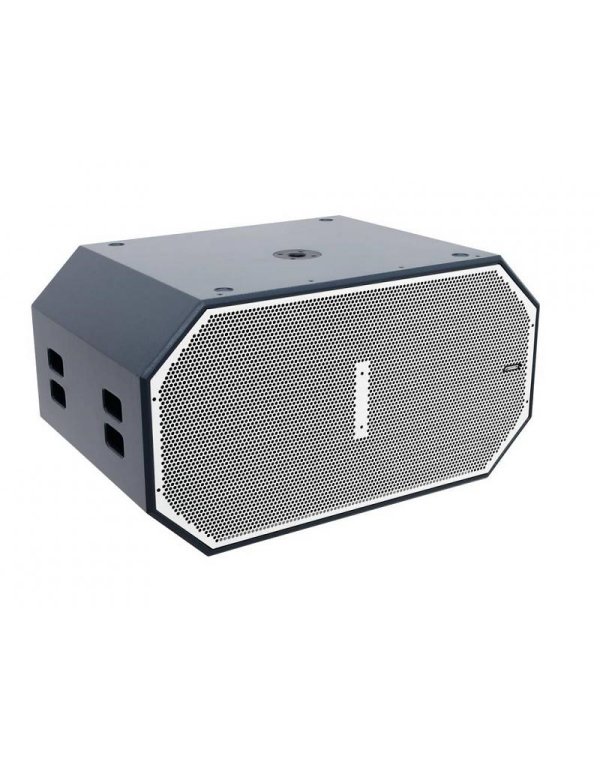

PRIME-182 Subwoofer 3000w/101dB 11041178

!
    Rated power: 3000 W RMS
    Components: 2 x 45 cm woofer (2 x 18")
    Connections: 2 x Speakon
    Sensitivity (1 W/m): 101 dB
    Max. SPL: 142 dB (1 m)
    Impedance: 4 ohms
    Frequency range: 35 - 13000 Hz
    Dimensions (HxWxD): 594 x 1094 x 695 mm
    Weight: 88 kg

CLA Serie

!

CLA-228 MKII line array 2*8"+1,75" 360w/96dB/16ohm 11040901

!
    MF rated power: 300 W RMS
    HF rated power: 60 W RMS
    MF program power: 600 W
    HF program power: 120 W
    Components: 2 x 20 cm woofer (2 x 8"), 4.4 cm driver (1.73")
    Connections: 2 Speakon sockets (4-pin)
    MF sensitivity (1 W/m): 96 dB
    HF sensitivity (1 W/m): 104 dB
    MF max. SPL (1 m): 123 dB
    HF max. SPL (1 m): 124 dB
    Impedance: MF 16 ohms / HF 16 ohms
    Frequency range: 68 Hz - 20 kHz
    Crossover frequency: 1.8 kHz
    Dispersion angle (1 kHz): H=100°, V=3°
    Dimensions (H x W x D): 285 x 670 x 285 mm
    Weight: 18 kg

CLA-212 12" line arraysub 700w/101dB 11040909

!
    Rated power: 700 W RMS
    Program power: 1400 W
    Components: 2 x 30 cm woofer (12")
    Connections: 2 Speaker sockets (4-pin)
    Sensitivity (1 W/m): 101 dB Max. SPL (1 m): 132 dB
    Impedance: 4 ohms
    Frequency range: 40 - 5000 Hz
    Dimensions (H x W x D): 380 x 668 x 545 mm
    Weight: 46 kg

CLA-115 15" line arraysub 500w/98dB 11040910

!
    Rated power: 500 W RMS
    Program power: 1000 W
    Components: 38 cm woofer (15")
    Connections: 2 Speaker sockets (4-pin)
    Sensitivity (1 W/m): 98 dB
    Max. SPL (1 m): 125 dB
    Impedance: 8 ohms
    Frequency range: 42 Hz - 200 Hz
    Dimensions (H x W x D): 480 x 668 x 680 mm
    Weight: 53 kg

CLA-118 18" line array floorsub 800w/97dB 11040915

!
    Rated power: 800 W RMS
    Program power: 1600 W
    Components: 45 cm woofer (18")
    Connections: 2 Speaker sockets (4-pin)
    Sensitivity (1 W/m): 97 dB
    Max. SPL (1 m): 126 dB
    Impedance: 8 ohms
    Frequency range: 38 Hz - 200 Hz
    Dimensions (H x W x D): 740 x 580 x 730 mm
    Weight: 56 kg

CLA basic system Small complete 11041056

!
    Compact line array
    Small basis set most suitable for live music or clubs with several hundred people, also applicable as groundstack
    Time saving 2-man installation directly from the transport case
    Low weight of the whole construction and reduced demands for the flying points
    Tight locking pins eliminating vibration noise
    Flying hardware regularly tested by an independent and accredited testing institute
    The set includes two CLA-115 bass reflex subwoofers and eight CLA-228 MKII tops as well as two matching flying brackets.

CLA basic system Medium complete 11041057

!
    Medium line array set
    The set includes four CLA-115 bass reflex subwoofers and 16 CLA-228 MKII tops as well as two matching flying brackets.

CLA basic system Large complete 11041058

!
    Large basis set, suitable for large open airs
    The set includes four CLA-115 bass reflex subwoofers, four CLA-118 floor subwoofers and sixteen CLA-228 MKII tops as well as two matching flying brackets

CLA-RIG Flying bracket for CLA-228/CLA-212 11040951

!
    Flying bracket CLA-228/CLA-212
    Technische informatie
    Max. load WLL (4-fold): 800 kg
    Max. load BGV C1 (8-fold): 400 kg
    Max. load BGV C1 (10-fold): 320 kg
    Max. load BGV C1 (12-fold): 260 kg
    Weight: 17 kg

CLA-RIG Flying bracket for CLA-228/CLA-115 11040950

!
    Max. load WLL (4-fold): 800 kg
    Max. load BGV C1 (8-fold): 400 kg
    Max. load BGV C1 (10-fold): 320 kg
    Max. load BGV C1 (12-fold): 260 kg
    Dimensions (LxWxH): 680 x 632 x 62 mm
    Weight: 17 kg

QRP quick release pin CLA 11040995 4st

!
    Fastening bolt for CLA/CSA/CSK, short / Quick release pin

WB-CLA-115 wheelboard 11040920

!
    Wheelboard for subwoofer
    Extremely rugged surface finish
    4 swivel castors (2 x brakes)
    Stackable due to fitting sinkings

WB-CLA-118 wheelboard 11040922

!
    Wheelboard for subwoofer
    Extremely rugged surface finish
    4 swivel castors (2 x brakes)
    Stackable due to fitting sinkings

WB-CLA-212 wheelboard 11040921

!
    Wheelboard for subwoofer
    Extremely rugged surface finish
    4 swivel castors (2 x brakes)
    Stackable due to fitting sinkings

Transport case for 8x CLA-228 11040998

!
    High-quality workmanship with 7 mm MDF, black laminated
    Three parts
    Bottom and cover upholstered with foam (extra strong, gray)
    Interior with black felt cover
    4 nickel-plated strut hinges 95°
    Aluminum profile frames (30 mm) with rounded edges
    Three-leg, large steel ball corners
    10 large butterfly locks
    4 wheels with brakes
    4 hinged, nickel-plated case handles
    Outside dimensions (WxDxH): 775 x 820 x 1295 mm
    Weight: 62 kg

Transport case for 2x CLA-212 11040996

!
    High-quality workmanship with 9 mm plywood multilayered glued, black laminated
    Two parts •Bottom and cover upholstered with foam (extra strong, gray)
    Aluminum profile frames (30 mm) with rounded edges
    Three-leg, large steel ball corners
    6 large butterfly locks
    10 wheels
    4 hinged, nickel-plated case handles
    6 castors (100 mm), 2 of which have brakes
    Outside dimensions (WxDxH): 1200 x 830 x 730mm
    Weight: 47 kg

Transport case for 2x CLA-115 11040997

!
    High-quality workmanship with 9 mm plywood multilayered glued, black laminated
    Two parts
    Bottom and cover upholstered with foam (extra strong, gray)
    Aluminum profile frames (30 mm) with rounded edges
    Three-leg, large steel ball corners
    10 large butterfly locks
    10 wheels
    8 hinged, nickel-plated case handles
    6 castors (100 mm), 2 of which have brakes
    Outside dimensions (WxDxH): 1680 x 820 x 805 mm
    Weight: 76 kg
