Passief X-overs

Filters alleen per 2stuks

SL X-over passief

!

DN-200

700/3500Hz/400w/8ohm 12.0170
Bestel
!

DNL-1245

sub/sat 200Hz/600w/8ohm 12.3280
Bestel
!

DN-1218PAX

2,5khz/600w/8ohm 12.5210
Bestel
!

DN-20

2khz/300w/8ohm 12.0160
Bestel
!

DN-1218P

3khz/350w/8ohm 12.6450
Bestel
!

2-way Crossover

UK Import product, dankzij de Brexit, UK vervoers regels en douane zaken, zijn orders onder 100€ voorlopig niet mogelijk.
Import en afhandeling word door ons geregeld!

Due to Brexit, UK traffic rules and customs matters, orders under 100 € are not possible for the time being. Transport costs are therefore extreme.
We take care off the import and custom clearance!

!

Eminence PXB2-800

Crossover Frequency: 800 Hz
Slope: 12 dB/octave
Impedance: 8 ohms
Power Handling: 400 W
Bestel
!

Eminence PXB2-1K6

Crossover Frequency: 1600 Hz
Slope: 12 dB/octave
Impedance: 8 ohms
Power Handling: 400 W
Bestel
!

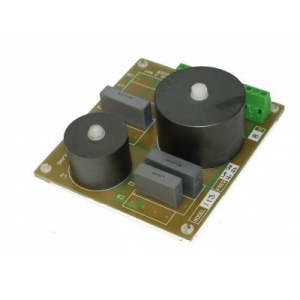

Convair LKDX113

designed for use with the RCF CX12G251, but should work with most 12" co-axial drivers
Nominal Frequency: 2,3KHz
Slope: 12dB/octave
RMS Power: 500W (THD approx. 0.5-0.7%)
Program Power: 1000W (THD approx. 1.0-1.5%)
Dimensions: 118 x 105 x 46mm
Insertion loss better than 0.4dB, Crossover point within +/-10% of stated value.
Bestel
!

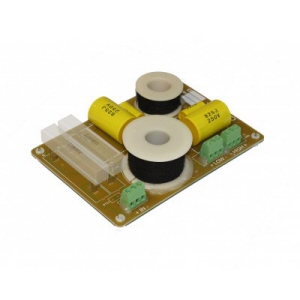

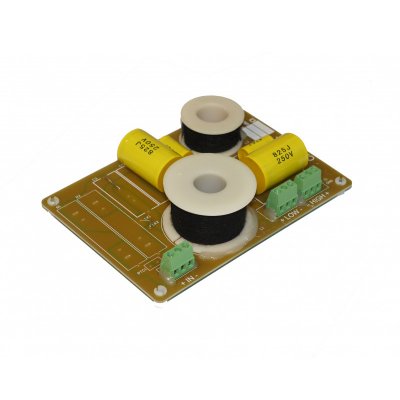

Convair CNVX29

Frequency: 1.6KHz
Slope: 12dB/octave
Impedance: 8 ohms
RMS Power: 400W
Program Power: 800W
Dimensions: 105 x 150 x 46mm high
Bestel
!

Convair CNVX93

Frequency: 2.0KHz
Slope: 12dB/octave
Impedance: 8 ohms
RMS Power: 500W
Program Power: 1000W
Dimensions: 118 x 105 x 46mm high
Insertion loss better than 0.4dB, Crossover point within +/-5% of stated value.
Bestel
!

Convair CNVX901

2-way 2.5kHz crossover for B&C DE250Nominal Frequency: 2.5KHz
Slope: 12dB/octave
Impedance: 8 ohms
RMS Power: 500W
Program Power: 1000W
Dimensions: 118 x 105 x 46mm
Insertion loss better than 0.4dB, Crossover point within +/-10% of stated value.
Bestel
!

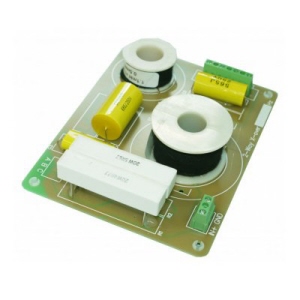

Convair CNVX911

2-way 1.6kHz crossover for P-Audio SN12-500CX
Nominal Frequency: 1.6KHz
Equalistion: -6db attenuation on compression driver with +3db CD horn EQ at 10khz.
Slope: 12dB/octave
Impedance: 8 ohms
RMS Power: 500W
Program Power: 1000W
Dimensions: 118 x 105 x 46mm
Insertion loss better than 0.4dB, Crossover point within +/-10% of stated value.
Bestel
!

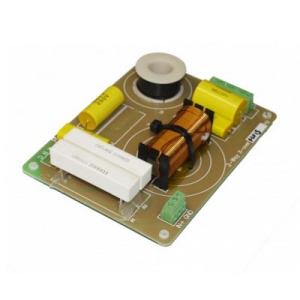

Convair CNVFLX15

Crossover designed for use with the Flex 15 cabinet. Suitable for use with various 1", 1.4" and 2" compression drivers in conjunction with the SC1064, SC1464 and SC2064 horn flares.

Nominal Frequency: 2.0KHz
Slope: 12dB/octave
Impedance: 8 ohms
RMS Power: 750W
Program Power: 1200W
Dimensions:160mmx120mm
Bestel
!

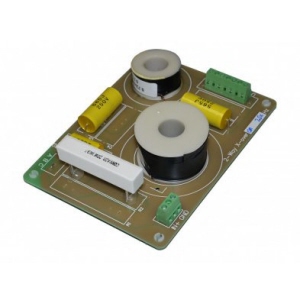

Convair 1581

This crossover has been optimised for use with the JAM Systems 1581
2.2kHz Butterworth 12dB per octave
Designed for use with the
Sonitus MR8XT and MR8XTN 8" horn drivers and the B&C DE250 compression driver mounted on Beyma's TD164 horn flare.
Bestel
!

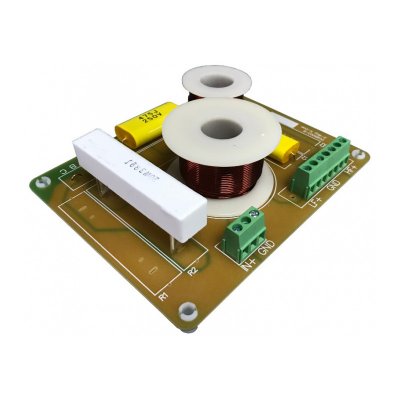

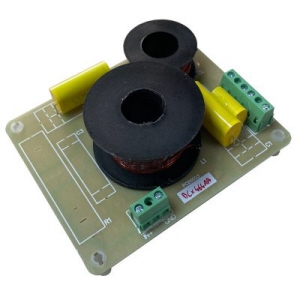

Convair CNVXODCX464

Custom Crossover for B&C DCX464 16 ohm Co-axial Driver.

Type: Two Way Crossover with HF attenuation and EQ
Nominal Frequency: 3100 Hz
Slope: 12dB/octave
Impedance: 16 ohms
RMS Power: 750W
Program Power: 1200W
Dimensions:134mmx106mm

Bestel
!

B&C XO-1 2 way 2khz

crossover for B&C 8CX21 and others Nominal Impedance 8 Ohm Crossover Frequency 2.0 kHz Slope 12 dB/oct. (Low) 12 db/oct. with eq. (High) Overall Dimensions 107x96 mm (4.2x3.8 in)
Bestel
!

B&C XO-2 2 way 1.8khz

crossover for B&C 12CXT and others
Nominal Impedance 8 Ohm
Crossover Frequency 1.8 kHz
Slope 6 dB/oct. (Low)
12 db/oct. with eq. (High)
Overall Dimensions 142x402 mm (5.6x4.2 in)
Bestel
!

B&C XO-3 2 way 1.8khz

crossover for B&C 12CX32 and others
Nominal Impedance 8 Ohm
Crossover Frequency 1.8 kHz
Slope 12 dB/oct. (Low)
12 db/oct. with eq. (High)
Overall Dimensions 107x96 mm (4.2x3.8 in)
Bestel
!

B&C XO-4 2 way 1.2khz

crossover for B&C 15CX40 and others.
Nominal Impedance 8 Ohm
Crossover Frequency 1.2 kHz
Slope 6 dB/oct. (Low)
12 db/oct. with eq. (High)
Overall Dimensions 142x107 mm (5.6x4.2 in)
Bestel
!

B&C XO-5 2 way 1.5khz

crossover for B&C 10NCX and others.
Nominal Impedance 8 Ohm
Crossover Frequency 1.5 kHz
Slope 12 dB/oct. (Low)
12 db/oct. with eq. (High)
Overall Dimensions 117x105 mm (4.6x4.1 in)
Bestel
!

B&C XO-6 2 way 1.5khz

crossover for B&C 12NCX and others.
Nominal Impedance 8 Ohm
Crossover Frequency 1.5 kHz
Slope 12 dB/oct. (Low)
12 db/oct. with eq. (High)
Overall Dimensions 117x105 mm (4.6x4.1 in)
Bestel
!

B&C FB10CX64

crossover for 10CXN64 and 10FCX64 coaxial speakers and CX10.64


Nominal Impedance: 8 Ohm
Filter Type: Two Way
Crossover Frequency: 2.1kHz
Low-pass Slope: 18.0dB/Oct
High-pass Slope: 18.0dB/Oct
Overall Dimensions: 173x120 mm
Bestel
!

B&C FBCXN88

crossover for 12CXN88, 14CXN88, 15CXN88 coaxial speakers and CX14

  • Nominal Impedance 8 Ohm
  • Crossover Frequency 1.6 kHz
  • Filter Type Two Way
  • Low-pass Slope 18.0 dB/oct
  • High-pass Slope 12.0 dB/oct
  • Overall Dimensions 173x120 mm (6.81x4.72 in)
Bestel
!

B&C FBU128

crossover for Utility12 design

  • Nominal Impedance 8 Ohm
  • Crossover Frequency 1.38 kHz
  • Filter Type Two Way
  • Low-pass Slope 12.0 dB/oct
  • High-pass Slope 12.0 dB/oct
  • Overall Dimensions 132x116 mm (5.20x4.57 in)
Bestel
!

B&C FBCXN36

crossover for 4CXN36, 5CXN36 and 6CXN36 Coaxials.

  • Nominal Impedance 8 Ohm
  • Crossover Frequency 1.0 kHz
  • Filter Type Two Way
  • Low-pass Slope 12.0 dB/oct
  • High-pass Slope 6.0 dB/oct
  • Overall Dimensions 100x76 mm (3.94x2.99 in)
Bestel
!

Beyma FD250

Power capacity: 600 W RMS
Crossover/cutoff frequency: 2 kHz
Attenuation slope (LP/HP): 12 dB/oct
Impedance LF: 4 - 8 ohm
Impedance HF: 8 ohm
HF Attenuation: 0, -3, -6, -7.5 dB
Equalization: -3 dB @ 3,5 kHz
Bestel
!

Beyma FD2CX

Power capacity: 500 W RMS
Crossover/cutoff frequency: 2,6 KHz
Attenuation slope (LP/HP): 24 dB/oct
Impedance LF: 8 ohm
Impedance HF: 8 ohm
Bestel
!

Beyma FD212

Power capacity: 600 W RMS
Crossover/cutoff frequency: 1.2 kHz
Attenuation slope (LP/HP): 12 dB/oct
Impedance LF: 4 - 8 ohm
Impedance HF: 8 ohm
HF Attenuation: 0, -3, -6, -7.5 dB
Equalization: -3 dB @ 3,5 kHz
Bestel
!
