Features
Color mixing: linear CMY color mixing
Color Temperature: 6500K
Switch to high-CRI mode with high CRI filter
Framing shutters: 4x fast and smooth framing shutters, each individually controllable; each blade can block light completely; framing module can be rotated at ±45°
1x rotating gobo wheel with 6 gobos plus open; convenient replacement
1x static gobo wheel with 8 gobos plus open
1x Color Wheel with 5 colors plus white
1x 4-facet prism,rotatable in either direction
Iris: Motorized, linear
2x new material frost filters(light & medium), can be used independently and overlayed
Motorized zoom and focus
Outstanding strobe effect with variable speed
Random strobe & pulse effects
Equipped with new heat management to effectively dissipate heat and reduce noise
2x modes: standard & power saving mode
Flicker-free management
Dust-proof and oil-proof design
Technical & Specification

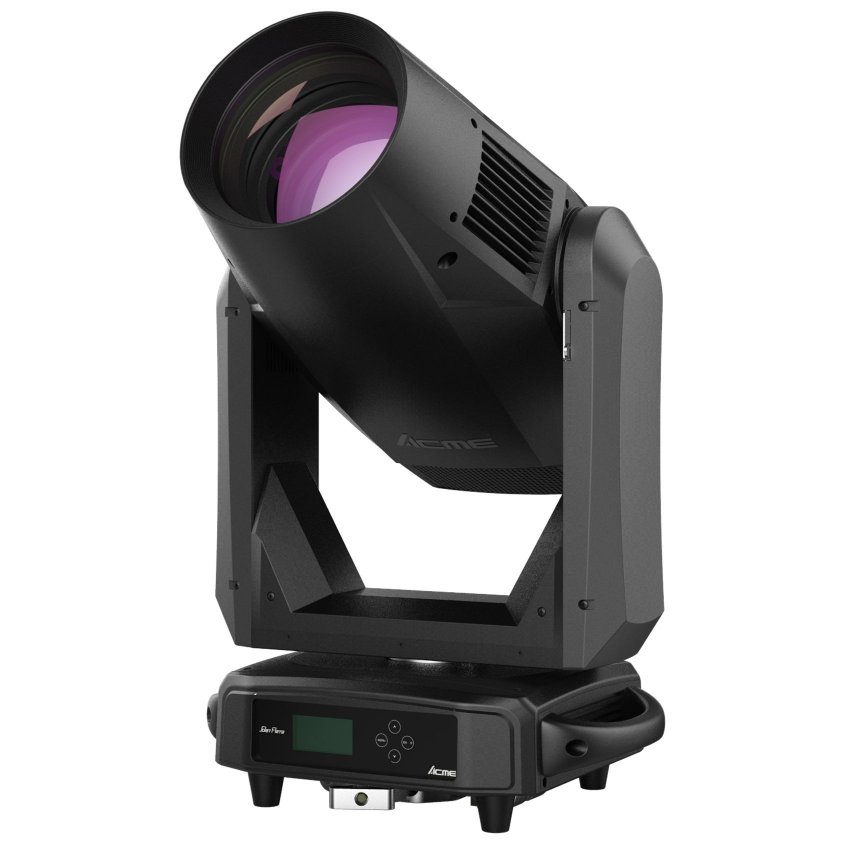

Model
XA-1000 BSWF II
Light Source
Light Source: SUL1000X
LED life expectancy: 20,000 hours
CRI:
High output mode Ra>70
High CRI mode Ra>90
Optical System
Advanced optical Systemto ensure clear, sharp image quality
High-efficiency zoom optical System(ratio 1:10)
Zoom range: 5-50°
Total lumen output: up to 35,000 lumens
Control& Program
4-button touch panel
Display: LCD display
Battery backup for user setup without mains connection
Protocols: DMX512,Art-Net,RDM,sACN
Wireless is optional
DMX Protocol modes: 4
Controlchannels: 20, 25, 29, 34
Pan/TiltResolution: 16-bit
CMY colour mixing system
Variable CTO
Dimmer: 8-bit or 16-bit
Firmware upgrade via DMX link
PAN & TILT
Pan movement: 540°
Tilt movement: 270°
Pan/Tiltlock
Automatic position correction
Rotating Gobos
1x rotating gobo wheel with 6 gobos plus open; convenient replacement
Image diameter: 25mm
Outside diameter: 37.3mm
Thickness: 1.1mm
Max. thickness: 4mm
Borofloat (or better) glass materials
‘Slot & Lock’ system for gobo replacement
Static Gobos
1x static gobo wheel with 8 gobos plus open
Color Wheel
1x Color Wheel with 5 colors plus white
Framing System
Framing shutters: 4x framing shutters, each individually controllable
Each shutter blade can block out light completely
Movement is fast, smooth and precise, with adjustable speed
Each shutter blade can block out light completely
Framing module can be rotated at ±45°
Electrical & Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 1300W
Power Connector in
Data in/out: 3-pin and 5-pin XLR
Art-Net input: RJ45
Fixture Specification
Height: 836mm (32.9”)
Width: 465mm (18.3”)
Depth: 352mm (13.8”)
