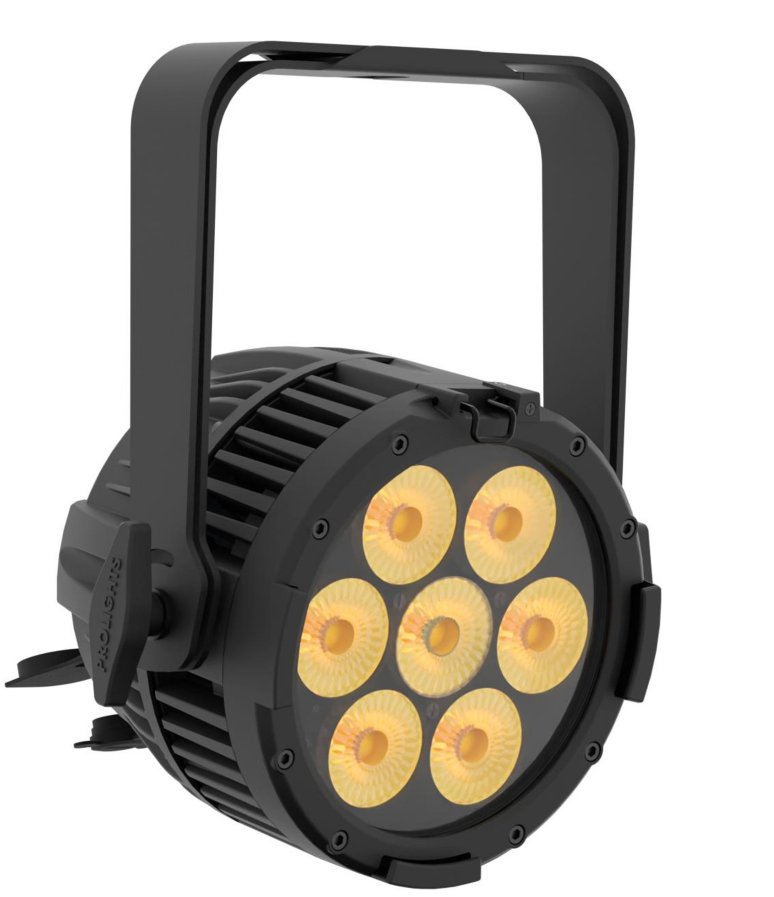

LumiPar 7IP 20D

  • Beschrijving

7x9 W RGBW / FC LED Par, 20 graden openingshoek

Lichtbron: 7x9W RGBW LEDs
Luminous flux(20°) 2'945 lm - (45°) 3'835lm, Lux(45°) 654lx @3 m full
Manual colour mode: manual adjustment of colour
Kleurmenging: RGBW / FC
Wit macro's: 3.000 K ~ 10.000K
Kleurenwiel: virtual colour wheel with macros
Macros:built-in white presets
Behuizing: sturdy die-cast aluminium body
Protocolen: DMX512
DMX kanalen: 4 / 6 / 11channel
Master/Slave: for synchronised operation of more units linked in a chain
Display: black OLED touch display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 0 - 30 Hz, electronic
LED Control: flicker free operation
Selecteerbare PWM frequentie: 600 ~ 25.000 Hz
Netvoeding: 100-240V - 50/60Hz
Max. stroomverbruik: 65W
Output (at 230V): 58 units on a single power line
Koeling: passive cooling and fan-free
Bevestiging: double hanging bracket suitable for safe hanging and for floor positioning
Signaal aansluiting: Seetronic XLR 5p IN/OUT connectors
Stroomaansluiting: Seetronic powerCON waterproof IN/OUT connectors
IP waarde: 65 for temporary outdoor application, not for fixed installation
Hoogte 28.6 cm x Breedte 24 cm x Diepte 15.4 cm
