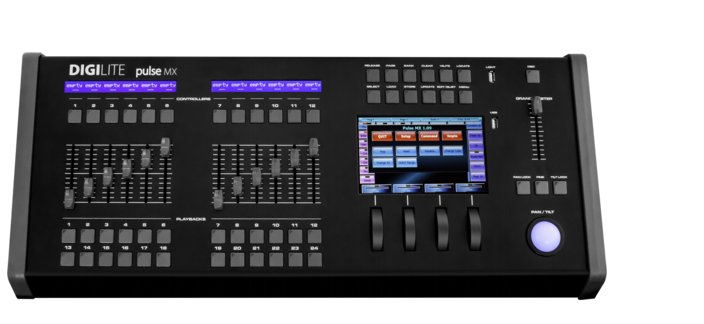

CONTROLS
7” 800×480 pixel touchscreen TFT LCD colour display
2 back-lit LCD display with 72 characters (2 lines x 36 digits) showing the fader configurations
1
2 controller buttons for direct access to playback and programming functions
12 faders with key buttons individually configurable as playback master, group master, manual cue
24 keys for direct access to playback registers
4 encoder wheels to control the features and effects during programming
Jog ball for pan and tilt control with lock and fine resolution buttons
Grandmaster fader and DBO button
Internal memory with SD slot
PERFORMANCE
P
owerful GUI interface able to easily manage the programming and playback up to 576 cue lists (organised in 24 pages with 24 cue list each), each having a maximum of 999 cues
3072 DMX channels: 2 direct universe DMX OUT through XLR 3p and 5p,
6 universes over Art-Net ethernet,
1 DMX IN line (independent)
Playback up to 48 simultaneous cue lists
Advanced effect generator
Updatable personality library
6 genres of programmable pallets for a quick and flexible programming of moving projectors
Pre-programmed Chris/Gam/Lee/Rosco palettes for use on all fixtures with RGB or CMY colour mixing
Maximum number of cue list per show: 576
Internal processor 454 Mhz with 128 Mb RAM
Internal 4GB SD memory card to store libraries, cues and data
CONNECTIONS
DMX out: 2 x XLR-3p; 2x XLR-5p; 1x RJ45 Art-Net
DMX in: 1 x XLR-5p
SMPTE in: 1x XLR-3p
MIDI in/out/thru: DIN-3p
Backup and memory: USB port
Service light: 1x USB port
PULSE-EX wings: 2x RJ12
