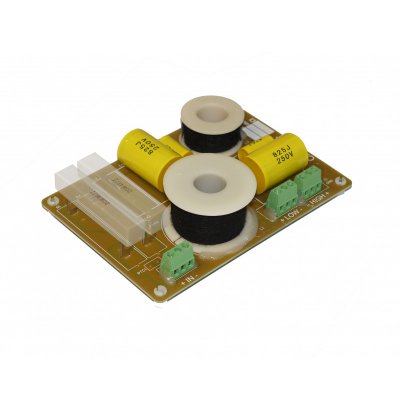

Convair CNVX901

  • Beschrijving
  • For use with a B&C DE250 Compression Driver to be used with most common mid-bass 10" and 12" drivers with sensitivity around 98-99dB. The crossover has a "hi-shelf" EQ with attenuatiuon, this attenuates lower frequencies to the compression driver more than the higher requencies, correcting the natural response of the DE250 to a more desirable EQ
  • Nominal Frequency: 2.5KHz
  • Slope: 12dB/octave
  • Impedance: 8 ohms
  • RMS Power: 500W (THD approx. 0.5-0.7%)
  • Program Power: 1000W (THD approx. 1.0-1.5%)
  • Dimensions: 118 x 105 x 46mm
  • Insertion loss better than 0.4dB, Crossover point within !plus!/-10% of stated valu
